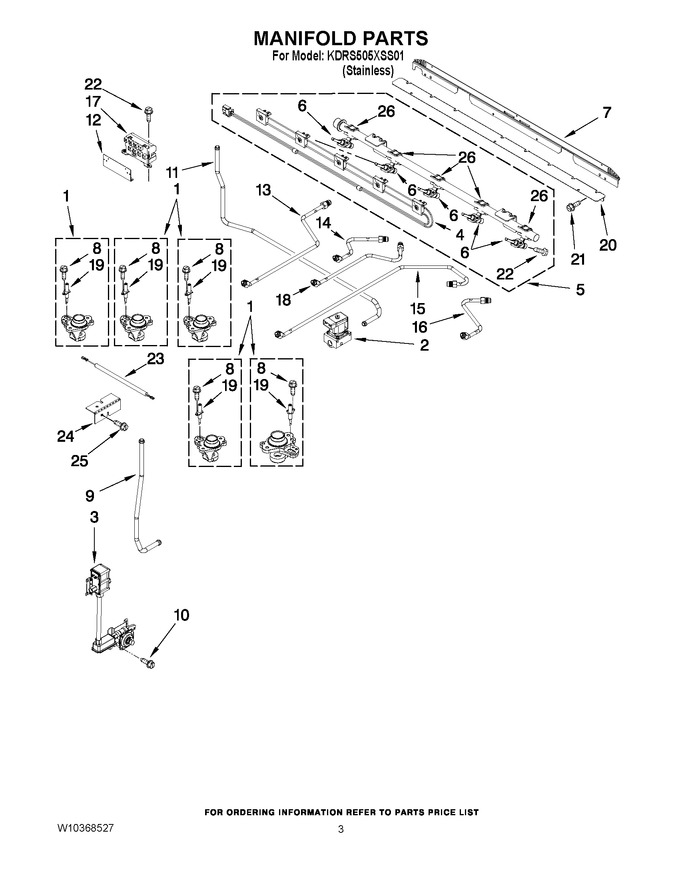

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10319349 | Holder, Orifice (right Front, 10k) |
|
- | |||||
| 1 | WPW10407680 | Holder, Orifice (lr & Rr, 5k) (Replaces: 7527P084-60) |
|
$ 115.09 | |||||
| 1 | WPW10407678 | Holder, Orifice (left Front, 16k) (Replaces: 7527P081-60) |
|
$ 126.04 | |||||
| 1 | WPW10319347 | Holder, Orifice (center, 7.3k) (Replaces: W10319347) |
|
$ 114.74 | |||||
| 2 | 9758382 | Valve, Shut Off |
|
$ 76.60 | |||||
| 3 | 7510P101-60 | Valve, Regulator |
|
$ 151.00 | |||||
| 4 | WPW10204718 | Harness, Switch (Replaces: W10204718) |
|
$ 220.97 | |||||
| 5 | WPW10204705 | Assembly, Pipe Manifold (Replaces: W10204705) |
|
Immediately | $ 331.88 | ||||
| 6 | WPW10298678 | Valves (fish Burner) (Replaces: W10298678) |
|
Immediately | $ 200.90 | ||||
| 6 | WPW10206287 | Valves (lr/rr, 5k) (Replaces: W10206287) |
|
Immediately | $ 198.14 | ||||
| 6 | WPW10206288 | Valves (lf/rf, 16k) (Replaces: W10206288) |
|
Immediately | $ 111.88 | ||||
| 7 | WPW10276470 | Bracket, Manifold Rr Cover (Replaces: W10343062) |
|
$ 89.33 | |||||
| 8 | WP8273062 | Screw, Igniter (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 9 | W10295050 | Tubing (supply Regulator To Shutoff) |
|
$ 192.26 | |||||
| 10 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 8.25 | ||||
| 11 | W10295055 | Tubing (supply Shutoff To Manifold) |
|
$ 207.20 | |||||
| 12 | W10311774 | Bracket, Support (for Spark Module) |
|
- | |||||
| 13 | W10323464 | Tubing, Lr |
|
$ 135.77 | |||||
| 14 | W10323463 | Tubing, Lf |
|
$ 132.93 | |||||
| 15 | W10323467 | Tubing, Rr |
|
- | |||||
| 16 | W10323466 | Tubing, Rf |
|
- | |||||
| 17 | 74009098 | Module, Spark (Replaces: 7431P053-60) |
|
$ 355.95 | |||||
| 18 | W10323465 | Tubing, Center |
|
$ 143.88 | |||||
| 19 | WPW10110378 | Ignitor (all (except Fish)) (Replaces: W10110378) |
|
Immediately | $ 54.71 | ||||
| 19 | W10324015 | Ignitor (fish Electrode) |
|
$ 77.13 | |||||
| 20 | WPW10276466 | Bracket, Manifold (bottom) (Replaces: W10276466) |
|
$ 108.19 | |||||
| 21 | WPY706189 | Screw (Replaces: 7101P653-60) |
|
Immediately | $ 7.55 | ||||
| 22 | W11233072 | Screw (Replaces: 7101P388-60) |
|
Immediately | $ 14.72 | ||||
| 23 | W10636384 | Ext., Electrode (Replaces: W10322044) |
|
$ 140.05 | |||||
| 24 | W10324366 | Holder, Electrode Ext. |
|
- | |||||
| 25 | W10217535 | Screw (extension Holder) |
|
$ 21.92 | |||||
| 26 | 98017516 | Connection, Saddle |
|
$ 93.53 | |||||
| NI | WPW10311058 | Lp Kit (Replaces: W10311058) |
|
$ 165.20 |
