Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10319111 Support, Backguard (black, Right) Special Order $ 43.80

1 W10319109 Support, Backguard (black, Left) Special Order $ 92.84

2 WP90767 Screw   (Replaces: 7101P426-60) In-Stock Immediately $ 8.25

3 WPW10424185 Console   (Replaces: W10295103) Special Order $ 380.92

4 W11233072 Screw   (Replaces: 7101P634-60) In-Stock Immediately $ 14.72

5 W10294402 Electric, Control Appelez-nous -
6 W10295113 Assy., Membrane (incl. Bracket) Special Order $ 255.44

7 W10278697 Shield, Vent In-Stock Immediately $ 183.33

8 WP74003976 Screw   (Replaces: 7101P500-60) Special Order $ 7.55

9 W10296773 Cover, Backguard Wire Special Order $ 194.52

10 WPW10299338 Shield, Wire Cover   (Replaces: W10299338) Special Order $ 96.60

11 WPW10318787 Connector, Flex   (Replaces: W10318787) Special Order $ 119.94

12 WPW10292689 Cover, Wire Filler   (Replaces: W10292689) Special Order $ 95.35


    View Diagram in Separate Window     Print Icon   Print Part List

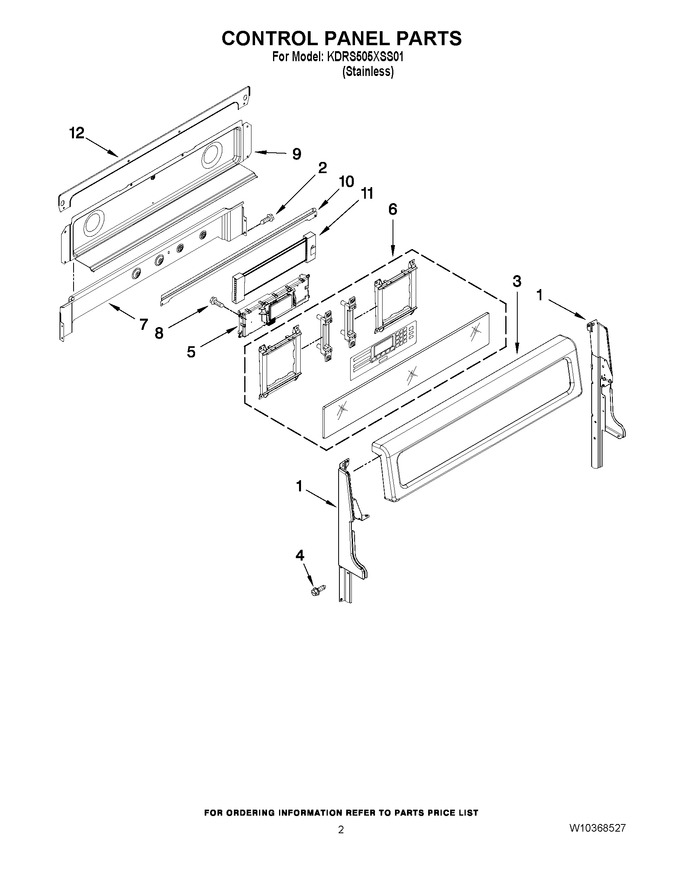

Diagram for KDRS505XSS01
