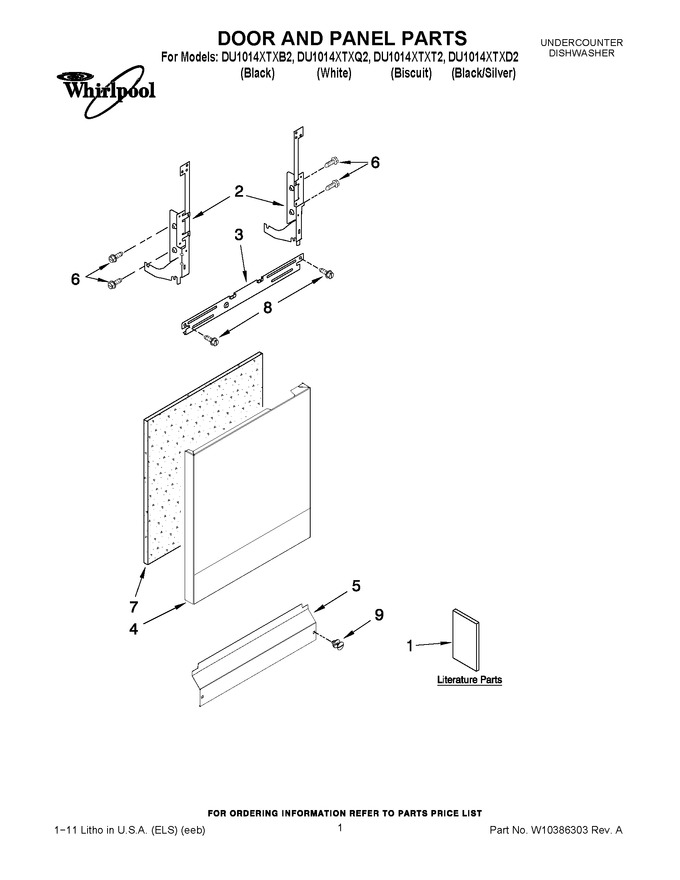

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10292953 | Tech Sheet, English |
|
- | |||||
| 1 | W10292970 | Tech Sheet, French |
|
- | |||||
| 1 | W10282553 | Instructions, Installation |
|
- | |||||
| 1 | W10300276 | Energy Guide |
|
- | |||||
| 1 | W10275146 | Guide, Use & Care (english/french) |
|
- | |||||
| 1 | W10275147 | Guide, Use & Care (spanish) |
|
- | |||||
| 2 | W11806566 | Arm, Hinge (left) (Replaces: W10143374) |
|
Immediately | $ 66.52 | ||||
| 2 | W11613572 | Arm, Hinge (right) (Replaces: W10143373) |
|
Immediately | $ 78.37 | ||||
| 3 | 8268983 | Stiffener, Door |
|
$ 38.77 | |||||
| 4 | W10274891 | Panel Front (white) |
|
$ 133.14 | |||||
| 4 | W10274893 | Panel Front (universal Silver) |
|
$ 242.48 | |||||
| 4 | WPW10274890 | Panel Front (black) (Replaces: W10274890) |
|
$ 333.31 | |||||
| 4 | W10274892 | Panel Front (biscuit) |
|
- | |||||
| 5 | W10237241 | Access Panel (biscuit) |
|
- | |||||
| 5 | W11763736 | Access Panel (black) (Replaces: W10237243) |
|
Immediately | $ 38.79 | ||||
| 5 | WPW10441007 | Access Panel (white) (Replaces: W10237242) |
|
$ 162.80 | |||||
| 6 | WPW10109200 | Screw (Replaces: 489470) |
|
Immediately | $ 8.00 | ||||
| 7 | WPW10073520 | Insulation, Door (Replaces: W10073520) |
|
$ 91.65 | |||||
| 8 | WP681414 | Screw, (Replaces: 343641) |
|
Immediately | $ 7.85 | ||||
| 9 | WPW10503548 | Screw (black) (Replaces: W10331789) |
|
Immediately | $ 30.39 | ||||
| 9 | WPW10503549 | Screw (white) (Replaces: W10331793) |
|
Immediately | $ 7.77 | ||||
| 9 | WPW10503550 | Screw (biscuit) (Replaces: W10331794) |
|
$ 27.62 |
