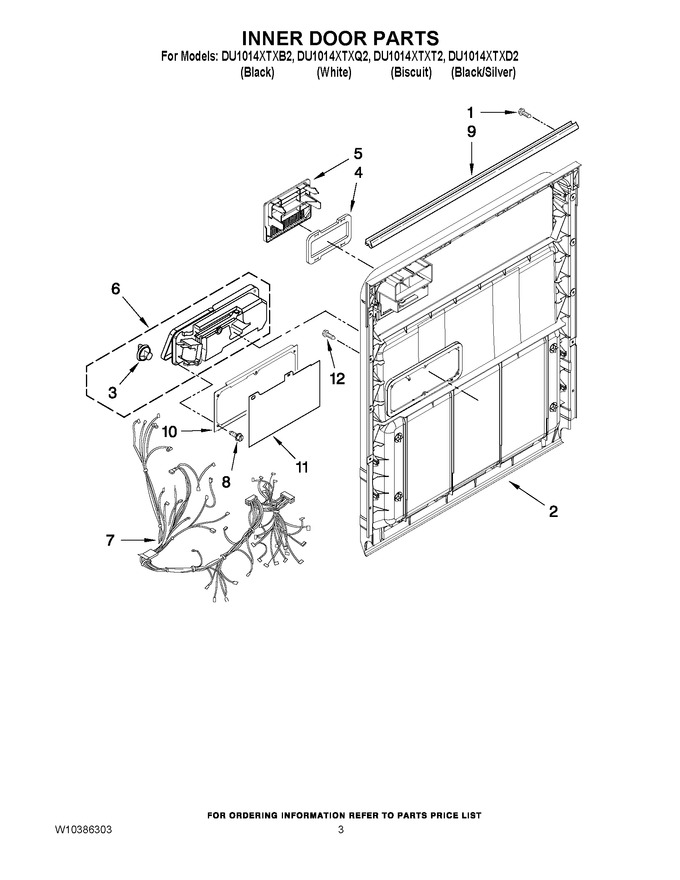

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10348413 | Screw, Door (Replaces: 3400815) |
|
Immediately | $ 8.03 | ||||
| 2 | WPW10254547 | Inner Door (also Order Item 4) (Replaces: W10254547) |
|
$ 250.07 | |||||
| 3 | WP8533380 | Cap, Rinse Aid (Replaces: 8533380) |
|
$ 26.58 | |||||
| 4 | WPW10254545 | Gasket, Vent (Replaces: W10254545) |
|
$ 11.61 | |||||
| 5 | WPW10254548 | Deflector, Vent (also Order Item 4) (Replaces: W10254548) |
|
$ 69.66 | |||||
| 6 | WPW10224430 | Dispenser, Assembly (Replaces: W10254206) |
|
Immediately | $ 204.79 | ||||
| 7 | WPW10348443 | Wiring Harness Main (Replaces: W10348443) |
|
$ 306.77 | |||||
| 8 | WPW10177098 | Screw (Replaces: W10177098) |
|
Immediately | $ 7.64 | ||||
| 9 | WP8269296 | Seal, Console/door (Replaces: 8269296) |
|
Immediately | $ 179.21 | ||||
| 10 | WPW10462232 | Bracket Dispenser (Replaces: 8535637) |
|
$ 36.04 | |||||
| 11 | WP8531865 | Shield, Dispenser (Replaces: 8531865) |
|
$ 107.76 | |||||
| 12 | WPW10348413 | Screw (Replaces: 3400815) |
|
Immediately | $ 8.03 |
