01 - Door And Panel Parts


02 - Control Panel And Latch Parts


03 - Inner Door Parts


04 - Fill, Drain And Overfill Parts


05 - Tub And Frame Parts


06 - Pump And Motor Parts


07 - Upper Wash And Rinse Parts


08 - Heater Parts


09 - Upper Rack And Track Parts


10 - Lower Rack Parts


11 - Lower Washarm Parts


12 - Optional Parts (not Included)

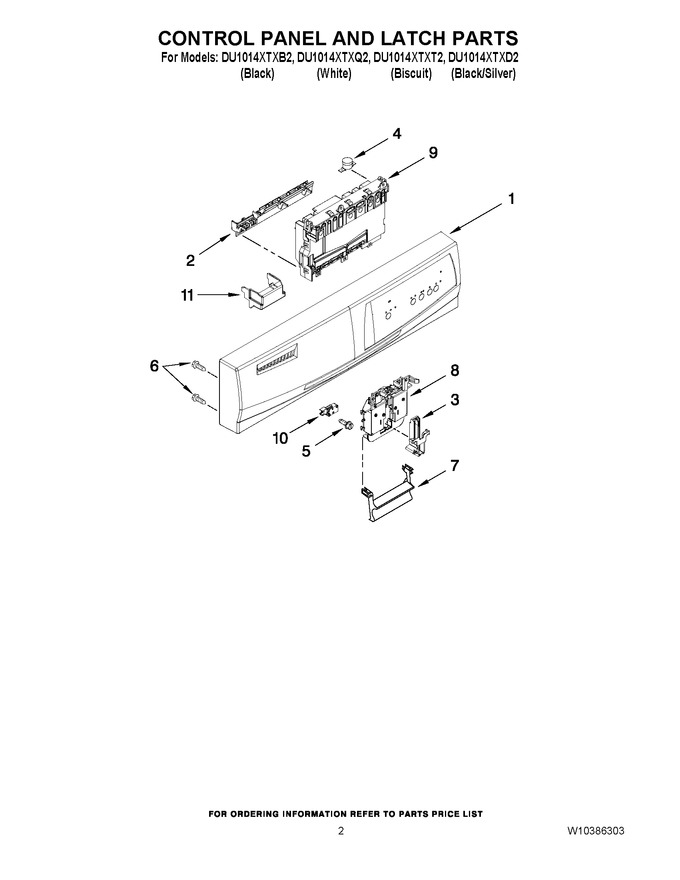

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10290156		Console Assembly (includes Active Overlay & Insert) (white)   (Replaces: W10290141)				$ 126.30
1	W10290142		Console Assembly (includes Active Overlay & Insert) (biscuit)		Appelez-nous	-
1	W10290140		Console Assembly (includes Active Overlay & Insert) (black)		Appelez-nous	-
2	WPW10372484		Brace Control Connector   (Replaces: W10195284)				$ 23.37
3	WP8524472		Actuator, Latch   (Replaces: 8524472)				$ 111.29
4	W10402110		Bi-metal   (Replaces: W10195528)			Immediately	$ 33.34
5	WP3400412		Screw   (Replaces: 3400412)			Immediately	$ 7.94
6	WPW10348413		Screw   (Replaces: 3400815)			Immediately	$ 8.41
7	WP8534985		Handle, Latch (white)   (Replaces: 8534985)				$ 127.13
7	8534986		Handle, Latch (biscuit)				$ 89.73
7	WP8534984		Handle, Latch (black)   (Replaces: 8534984)				$ 131.06
8	WPW10274884		Bolt, Latch   (Replaces: W10274884)			Immediately	$ 86.34
9	W10319897		Control, Electronic		Appelez-nous	-
10	WPW10274880		Switch, Door   (Replaces: W10274880)			Immediately	$ 82.89
11	W10325295		Box, Connector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
