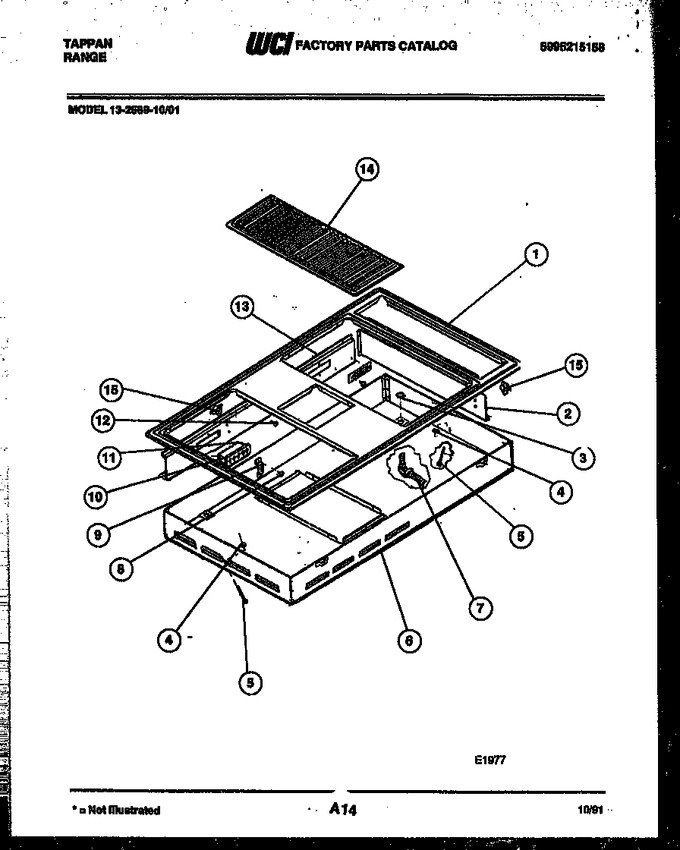

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210534 | Main Top Chrome |
|
- | |||||
| 2 | 5303210419 | Shield-switch |
|
- | |||||
| 3 | 5303210461 | Connector |
|
- | |||||
| 4 | 5303210441 | Nut |
|
- | |||||
| 5 | 5303210440 | Screw |
|
- | |||||
| 6 | 5303210535 | Burner Box |
|
- | |||||
| 7 | 5303210460 | Conduit Assy. |
|
- | |||||
| 8 | 5303210536 | Screw |
|
- | |||||
| 9 | 5303210537 | Bracket Receptacle |
|
- | |||||
| 10 | 5303210538 | Receptacle Ceramic |
|
- | |||||
| 11 | 5303210539 | Contact (female) |
|
- | |||||
| 12 | 5303210540 | Screw |
|
- | |||||
| 13 | 5303210541 | Baffle |
|
- | |||||
| 14 | 5303210542 | Cover Vent |
|
- | |||||
| 15 | 5303210434 | Switch Fan |
|
- | |||||
| *37532 | 5303210546 | Harness Wire |
|
- | |||||
| *37532 | 5303210545 | Insulation Board |
|
- | |||||
| *37532 | 5303210544 | Clip Wire |
|
- | |||||
| *37532 | 5303210547 | Harness Wire |
|
- |
