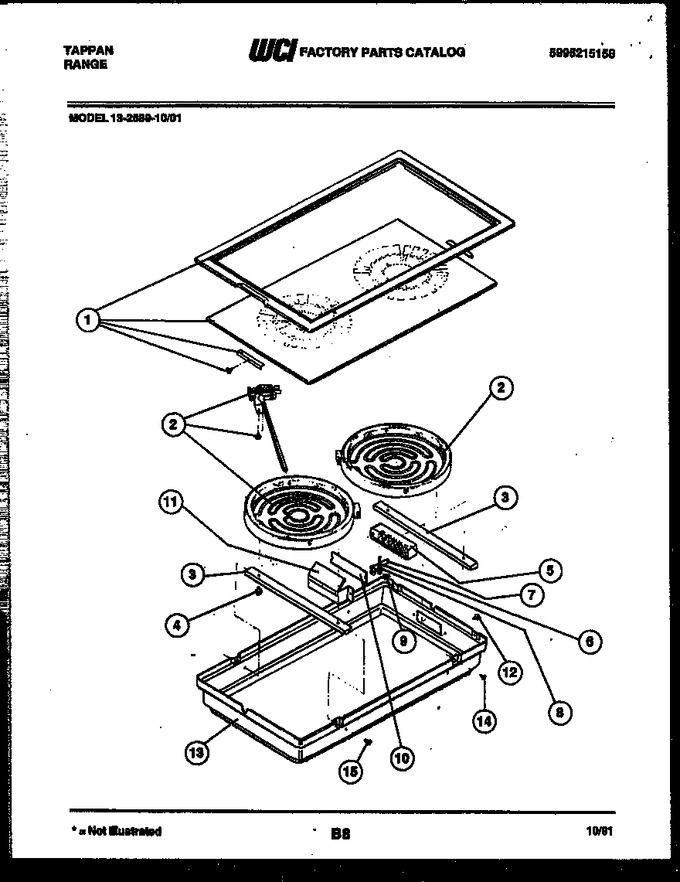

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210577 | Top Assy Incl., Glass, Trim, Retainers |
|
- | |||||
| 2 | 5303210578 | Element Assy Includes Element, Limit Switch |
|
- | |||||
| 3 | 5303210579 | Bracket Element Mtg. |
|
- | |||||
| 4 | 5303210527 | Screw |
|
- | |||||
| 5 | 5303210569 | Plug Ceramic |
|
$ 21.05 | |||||
| 6 | 5303210570 | Prong - Ground |
|
- | |||||
| 7 | 5303210571 | Prong - Power |
|
- | |||||
| 8 | 5303210572 | Harness-wire |
|
- | |||||
| 9 | 5303210497 | Screw |
|
- | |||||
| 10 | 5303210574 | Insulator |
|
- | |||||
| 11 | 5303210580 | Bracket - Ceramic Plug |
|
- | |||||
| 12 | 5303210536 | Screw |
|
- | |||||
| 13 | 5303210581 | Module Pan |
|
- | |||||
| 14 | 5303210536 | Screw |
|
- | |||||
| 15 | 5303210527 | Screw |
|
- | |||||
| *37535 | 5303210583 | Harness-wire Front |
|
- | |||||
| *37535 | 5303210582 | Harness-wire Rear |
|
- | |||||
| *37535 | 5303210584 | Harness-wire Limit Switch |
|
- |
