Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303210560 Element Large Appelez-nous -
2 5303210561 Burner Bowl Large Appelez-nous -
3 5303210562 Terminal Block Front S/bracket - Wire Appelez-nous -
4 5303210536 Screw Appelez-nous -
5 5303210564 Element Small Appelez-nous -
6 5303210565 Burner Bowl Small Appelez-nous -
7 5303210566 Module Top Chrome Appelez-nous -
8 5303210567 Screw Appelez-nous -
9 5303210568 Weld Nut Appelez-nous -
10 5303210569 Plug Ceramic Special Order $ 21.05

11 5303210570 Prong - Ground Appelez-nous -
12 5303210572 Harness-wire Appelez-nous -
13 5303210573 Screw Appelez-nous -
14 5303210574 Insulator Appelez-nous -
15 5303210575 Bracket Ceramic Plub Appelez-nous -
16 5303210576 Module Pan Appelez-nous -
17 5303210536 Screw Appelez-nous -
11A 5303210571 Prong - Power Appelez-nous -
3A 5303210563 Terminal Block Rear W/ Bracket-wire Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

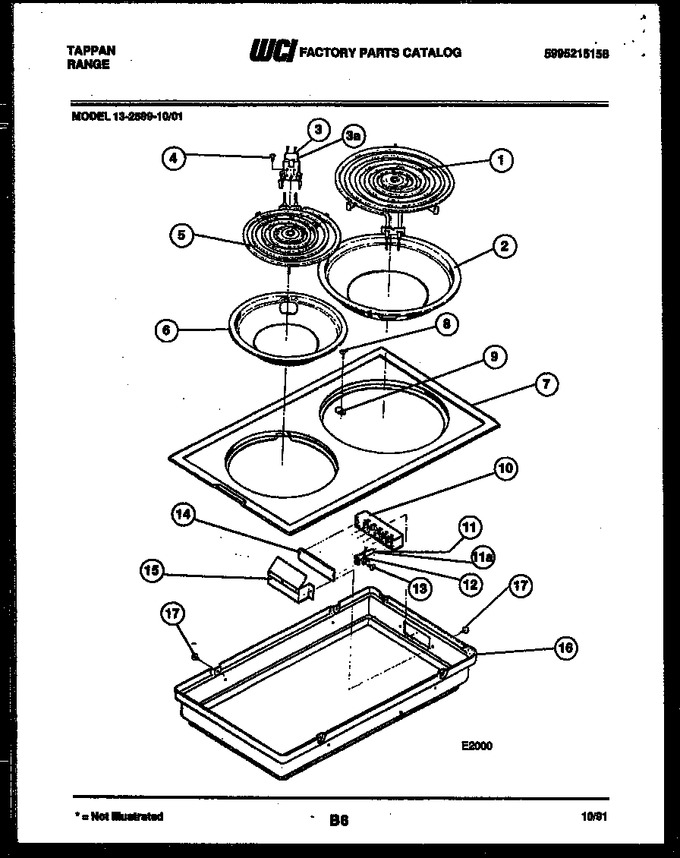

Diagram for 13-2589-32-01
