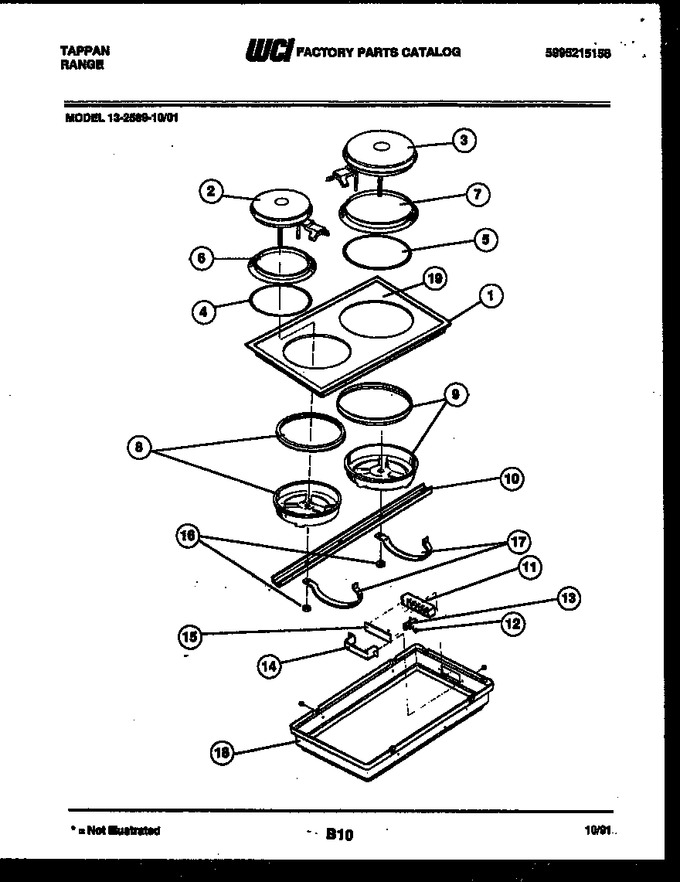

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5303210599 | Frame - Top |
|
- | |||||
| 2 | 5303210590 | Element Small |
|
- | |||||
| 3 | 5303210591 | Element Large |
|
- | |||||
| 4 | 5303210592 | Gasket Ring Small |
|
- | |||||
| 5 | 5303210593 | Gasket Ring Large |
|
- | |||||
| 6 | 5303210588 | Trim Ring Small |
|
- | |||||
| 7 | 5303210589 | Trim Ring Large |
|
- | |||||
| 8 | 5303210594 | Gasket Small |
|
- | |||||
| 9 | 5303210595 | Gasket Large |
|
- | |||||
| 10 | 5303210585 | Bracket Element Mtg. |
|
- | |||||
| 11 | 5303210569 | Block Plug |
|
$ 21.05 | |||||
| 12 | 5303210571 | Prong - Power |
|
- | |||||
| 13 | 5303210570 | Prong - Ground |
|
- | |||||
| 14 | 5303210580 | Bracket - Plug Block |
|
- | |||||
| 15 | 5303210574 | Insulator |
|
- | |||||
| 16 | 5303210497 | Screw |
|
- | |||||
| 17 | 5303210598 | Sprong Leaf |
|
- | |||||
| 18 | 5303210600 | Module Pan |
|
- | |||||
| 19 | 5303283277 | Top - Glass |
|
- | |||||
| *37537 | 5303210597 | Nut 6 Mm |
|
- | |||||
| *37537 | 5303210586 | Wire Clamp |
|
- | |||||
| *37537 | 5303210540 | Screw 8 X 3/8 |
|
- | |||||
| *37537 | 5303210552 | Taping Screw |
|
- | |||||
| *37537 | 5303210601 | Harness Wire |
|
- | |||||
| *37537 | 5303210602 | Wire Clamp |
|
- | |||||
| *37537 | 5303210603 | Screw 8.32 X .375 |
|
- | |||||
| *37537 | 5303210604 | Nut Lockhex |
|
- | |||||
| *37537 | 5303283278 | Support - Top Glass |
|
- |
