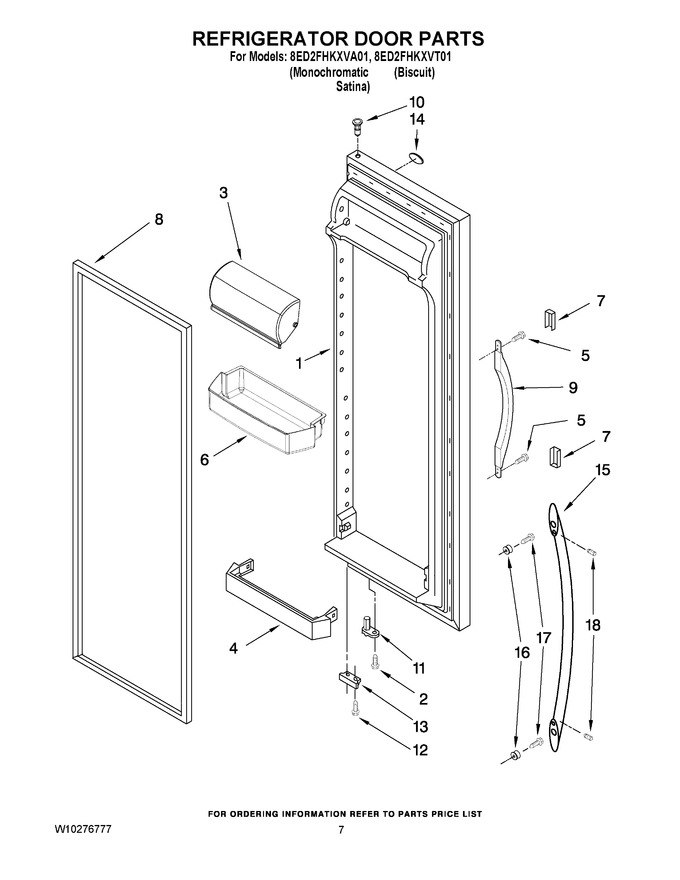

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	L2206826T		Refrigerator Door (includes Item No.8) (biscuit)   (Replaces: 2309622T)		Appelez-nous	-
1	2309622LA		Refrigerator Door (includes Item No.8) (mono Satina)		Appelez-nous	-
2	WP3400012		Screw   (Replaces: 3400012)				$ 7.82
3	WP2256101		Door, Compartment   (Replaces: 2256101)			Immediately	$ 85.16
4	WP2309941		Trivet, Shelf   (Replaces: 2309941)			Immediately	$ 76.32
5	WP489491		Screw   (Replaces: 489491)				$ 6.95
6	WPW10321304		Door Bin (3)   (Replaces: 2304235)			Immediately	$ 44.73
7	2194272T		Endcap, Handle				$ 6.64
8	W10136732		Door Gasket, Magnetic (apollo Grey)   (Replaces: 2327161)			Immediately	$ 344.00
8	2159073		Door Gasket, Magnetic (mist Beige)   (Replaces: 2309600)				$ 317.32
9	2304413T		Handle, Center (biscuit)		Appelez-nous	-
9	2186649W		Handle, Center (white)				$ 70.49
10	WP2182181		Thimble, Top   (Replaces: 2308091)				$ 7.76
11	WP2182179		Door Closer, Upper Cam   (Replaces: 2182178)			Immediately	$ 6.39
12	WP489483		Screw   (Replaces: 489420)				$ 10.87
13	W10185570		Bracket, Door Stop				$ 11.59
14	2220214		Nameplate				$ 32.43
15	2254600S		Handle (brushed Alum)				$ 106.71
16	WPW10170540		Stud, Handle   (Replaces: 2219698)			Immediately	$ 8.51
17	WP488163		Screw   (Replaces: 488208)				$ 7.54
18	W11366418		Screw, Set   (Replaces: W10010140)			Immediately	$ 15.79
