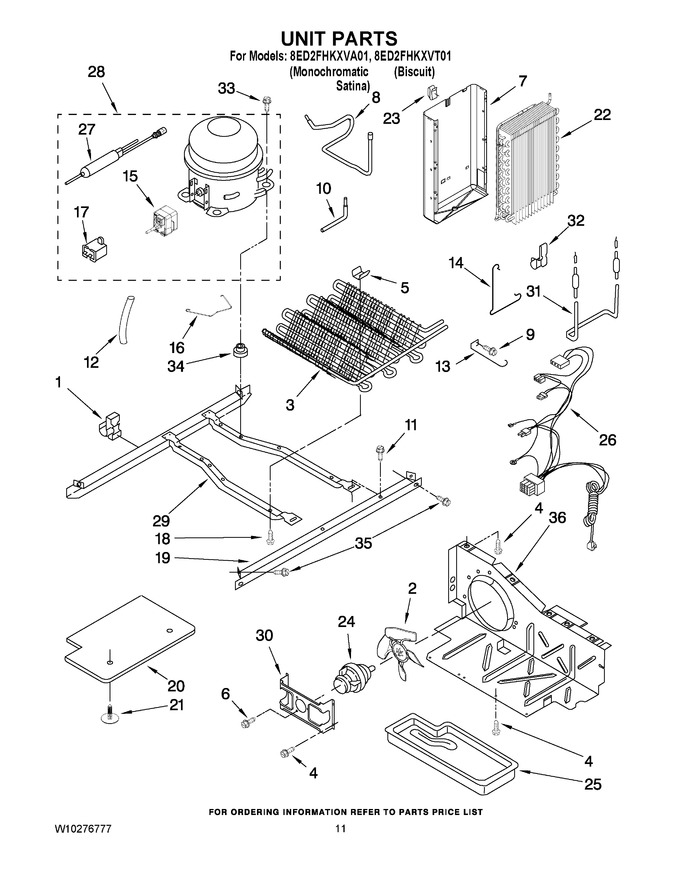

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2208280		Clip, Wire & Tube		Appelez-nous	-
2	2190685		Fan, Blade				$ 52.00
3	2324712		Condenser Assembly   (Replaces: W10222349)				$ 308.05
4	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.83
5	W10683556		Clip, Condenser   (Replaces: 2311725)				$ 18.46
6	681390		Screw   (Replaces: 489099)				$ 13.06
7	WPW10194474		Heat Shield And Drain Pan   (Replaces: W10194474)				$ 119.53
8	2220642		Tube Suction				$ 221.59
9	WP489478		Screw   (Replaces: 489478)				$ 7.75
10	2325479		Tube, Process		Appelez-nous	-
11	WP489427		Screw   (Replaces: 489427)				$ 7.47
12	W11751592		Sleeve   (Replaces: 2161302)			Immediately	$ 20.30
13	1105612		Guard, Fan				$ 40.58
14	2161324		Clip, Defrost Heater		Appelez-nous	-
15	WP2188831		Start-device, Combination (start Relay And Overload) (service)   (Replaces: 2188831)				$ 177.48
16	2212996		Bale Strap   (Replaces: 2255113)				$ 12.11
17	WP65889-4		Capacitor (production)   (Replaces: 2252799)			Immediately	$ 61.14
17	WP65889-4		Capacitor (service)   (Replaces: 65889-4)			Immediately	$ 61.14
18	W11544659		Screw   (Replaces: 8281232)				$ 13.67
19	WPW10196323		Unit Mounting Rail   (Replaces: W10196323)				$ 118.94
20	W11115203		Unit Cover, Bottom   (Replaces: 2304898)				$ 517.91
21	489396		Clip				$ 10.72
22	WP2188822		Evaporator   (Replaces: 2188822)			Immediately	$ 339.85
23	2155547		Clip, Heat		Appelez-nous	-
24	W10822259		Motor, Fan   (Replaces: 2188537)			Immediately	$ 221.30
25	WPW10614158		Tray, Evaporator   (Replaces: 1105523)			Immediately	$ 113.18
26	2310063		Harness, Unit		Appelez-nous	-
27	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 30.78
27	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 30.78
28	W10355489		Compressor (includes Items 15, 17, 27 & 34) (also Order 876765 Tube Kit)   (Replaces: W10120462)				$ 646.20
29	2304903		Unit Mounting Frame				$ 233.03
30	WP2181929		Bracket, Fan Motor   (Replaces: 2181929)				$ 12.31
31	WP2323197		Heater, Defrost   (Replaces: 2188174)			Immediately	$ 117.38
32	W11623163		Clip   (Replaces: 2304287)		Appelez-nous	-
33	876811		Screw   (Replaces: 489373)				$ 7.42
34	W11661108		Grommet (4) (service)   (Replaces: 2183042)				$ 14.49
34	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
35	489340		Screw		Appelez-nous	-
36	W10163483		Air Baffle		Appelez-nous	-
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
NI	N/P		Refrigerant Charge (5.0 Oz. (r-134))		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
