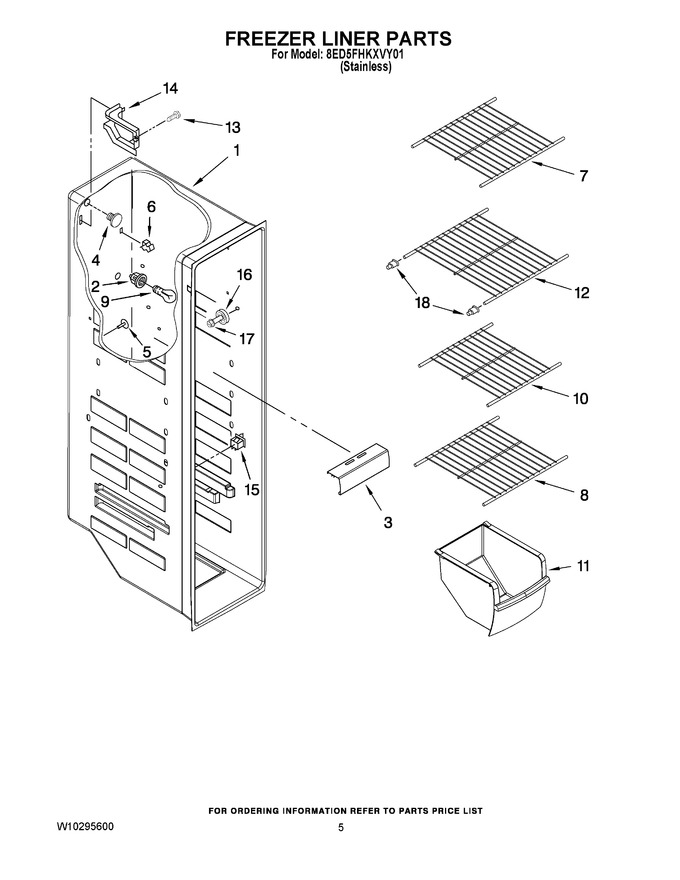

04 - Freezer Liner Parts


05 - Air Flow Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Unit Parts


09 - Control Parts


10 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Liner (not Aseviceable Part)		Appelez-nous	-
2	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 101.10
3	2198479		Light Lens		Appelez-nous	-
4	2223173		Plug, Fill Tube				$ 8.80
5	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.65
6	2215823		Clip, Air Duct (2)   (Replaces: 842534)				$ 10.42
7	W10318945		Shelf, Wire   (Replaces: W10276748)				$ 98.29
8	W10276759		Shelf, Wire		Appelez-nous	-
9	W11679940		Light Bulb   (Replaces: W10194422)			Immediately	$ 11.30
10	WPW10318947		Shelf, Wire   (Replaces: W10276761)				$ 87.44
11	W11577967		Freezer Bin   (Replaces: 2309757)				$ 91.71
12	WPW10318948		Shelf, Wire   (Replaces: W10276762)				$ 147.84
13	WP489478		Screw   (Replaces: 489478)				$ 7.75
14	2160912		Wiring Cover		Appelez-nous	-
15	W11384469		Switch, Rocker Arm   (Replaces: 1118894)			Immediately	$ 37.23
16	W11527119		Stud Assembly   (Replaces: W10173127)		Appelez-nous	-
17	W10191952		Screw				$ 5.65
18	WPW10130299		Shelf Cup   (Replaces: W10130299)			Immediately	$ 14.00
