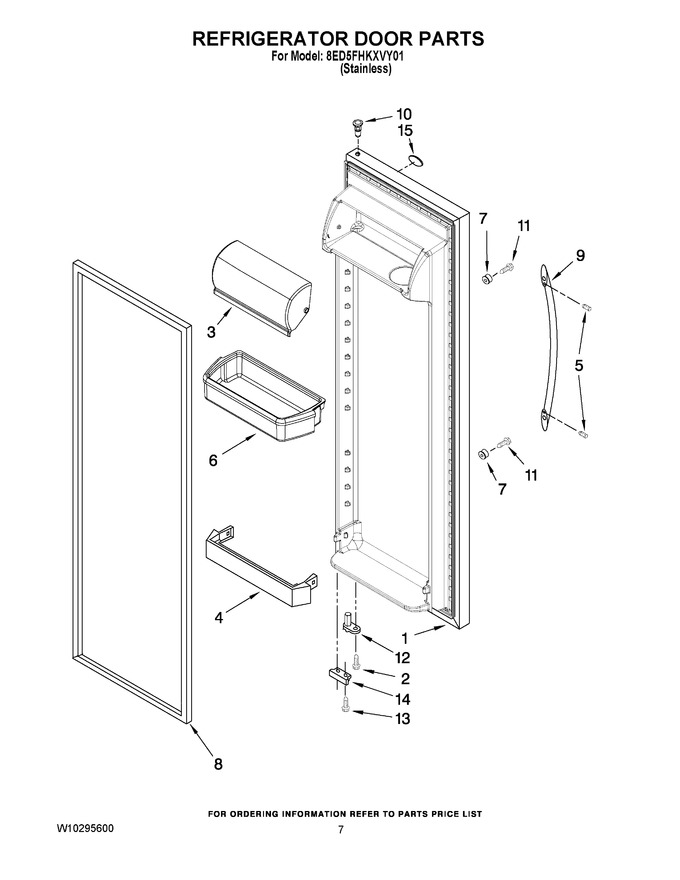

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2323863SA | Refrigerator Door (includes Item No.8) (stainless) |
|
- | |||||
| 2 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.82 | |||||
| 3 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 85.16 | ||||
| 4 | WP2309941 | Trivet, Shelf (Replaces: 2309941) |
|
Immediately | $ 76.32 | ||||
| 5 | W11366418 | Set Screw (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 6 | W10158506 | Shelf Bin (3) |
|
$ 109.63 | |||||
| 7 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 8 | WPW10136734 | Door Gasket, Magnetic (service) (Replaces: 2327163) |
|
$ 319.42 | |||||
| 9 | 2254608S | Handle |
|
- | |||||
| 10 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 7.76 | |||||
| 11 | WP488163 | Screw, Mounting (Replaces: 488208) |
|
$ 7.54 | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.87 | |||||
| 14 | W10185570 | Bracket, Door Stop |
|
$ 11.59 | |||||
| 15 | 2220214 | Nameplate |
|
$ 32.43 |
