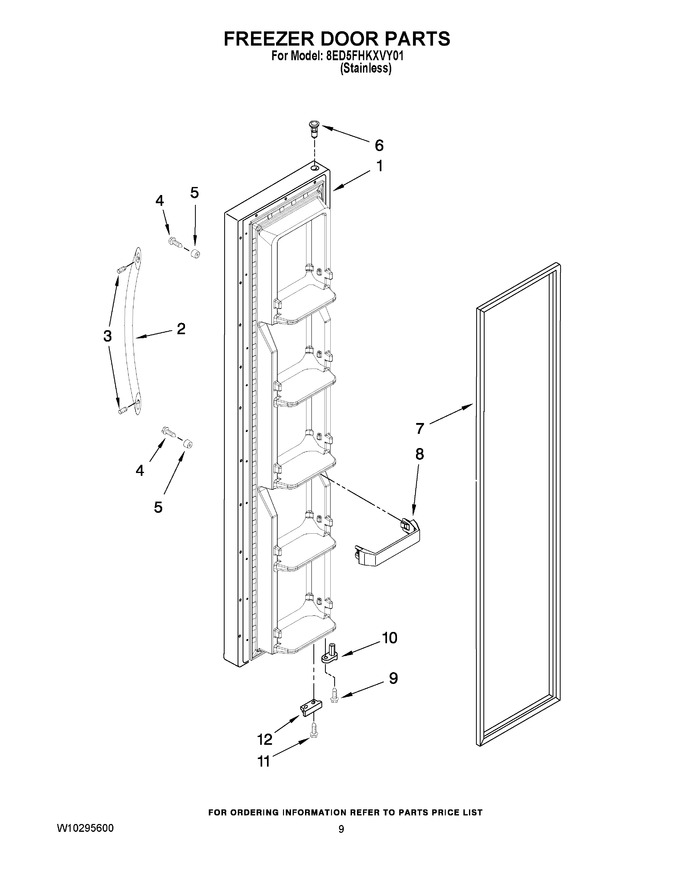

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10203193 | Freezer Door (includes Item No.7) (stainless) |
|
- | |||||
| 2 | 2254608S | Handle |
|
- | |||||
| 3 | W11366418 | Screw, Set (Replaces: W10010140) |
|
Immediately | $ 15.79 | ||||
| 4 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.92 | |||||
| 5 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.51 | ||||
| 6 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 8.15 | |||||
| 7 | W10136735 | Door Gasket, Magnetic (service) (Replaces: 2327164) |
|
$ 254.84 | |||||
| 8 | WP2171157 | Trivet (Replaces: 2171157) |
|
$ 63.70 | |||||
| 9 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 8.26 | |||||
| 10 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.39 | ||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 11.41 | |||||
| 12 | W10185566 | Bracket, Door Stop |
|
- |
