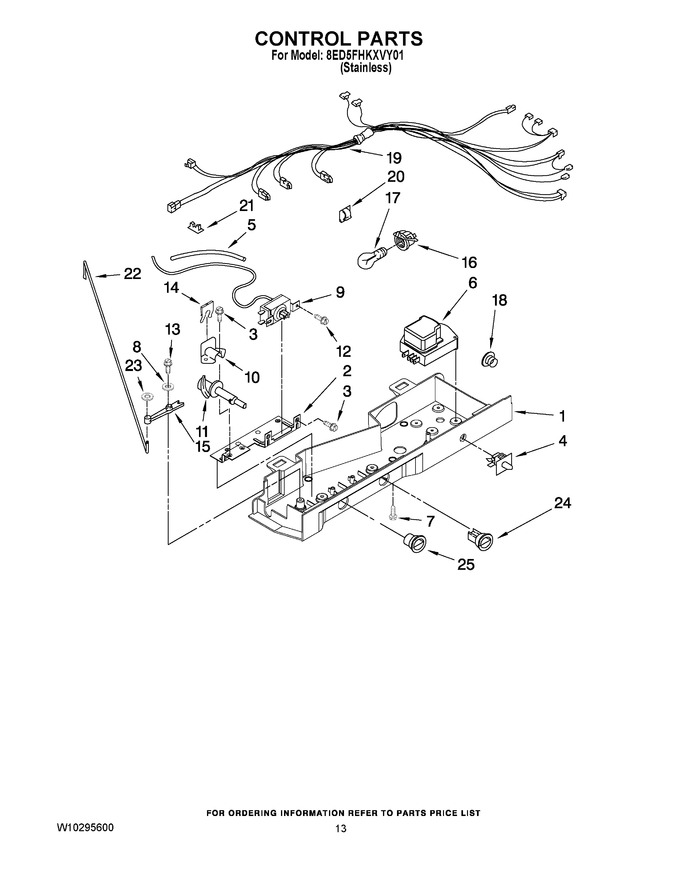

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10167079		Control Box		Appelez-nous	-
2	2311611		Mounting Bracket		Appelez-nous	-
3	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.95
4	WP2149705		Light Switch   (Replaces: 2149705)			Immediately	$ 40.40
5	WP2196003		Tube Barrier   (Replaces: 2196001)				$ 8.35
6	W10822278		Defrost Timer   (Replaces: 2188375)			Immediately	$ 34.44
7	489392		Screw (2)   (Replaces: 489398)				$ 14.02
8	489203		Spring Washer		Appelez-nous	-
9	WP2198202		Thermostat (rc)   (Replaces: 2198202)			Immediately	$ 78.43
10	1110560		Bearing Body				$ 11.30
11	WP2182195		Cam Assembly   (Replaces: 2182195)				$ 5.13
12	WP965173		Screw   (Replaces: 487869)			Immediately	$ 11.87
13	627068		Screw				$ 12.73
14	WP2196062		Damper Control   (Replaces: 2196062)				$ 11.25
15	1110559		Pivot Arm				$ 8.35
16	4387478		Light Socket   (Replaces: 2162085)			Immediately	$ 115.67
17	W11679940		Light Bulb   (Replaces: W10194422)			Immediately	$ 11.30
18	940014		Hole Plug				$ 18.33
19	2311636		Control Box Harness		Appelez-nous	-
20	WP1115374		Clip, Wiring   (Replaces: 1115374)				$ 8.14
21	1115375		Clip, Wiring				$ 11.15
22	2311631		Connecting Rod		Appelez-nous	-
23	489285		Fastener, Push-on		Appelez-nous	-
24	W10723843		Thermostat Knob   (Replaces: 2311614)				$ 27.92
25	2311615		Control Knob				$ 52.26
