SELECT A DIAGRAM

01 - Cabinet Back

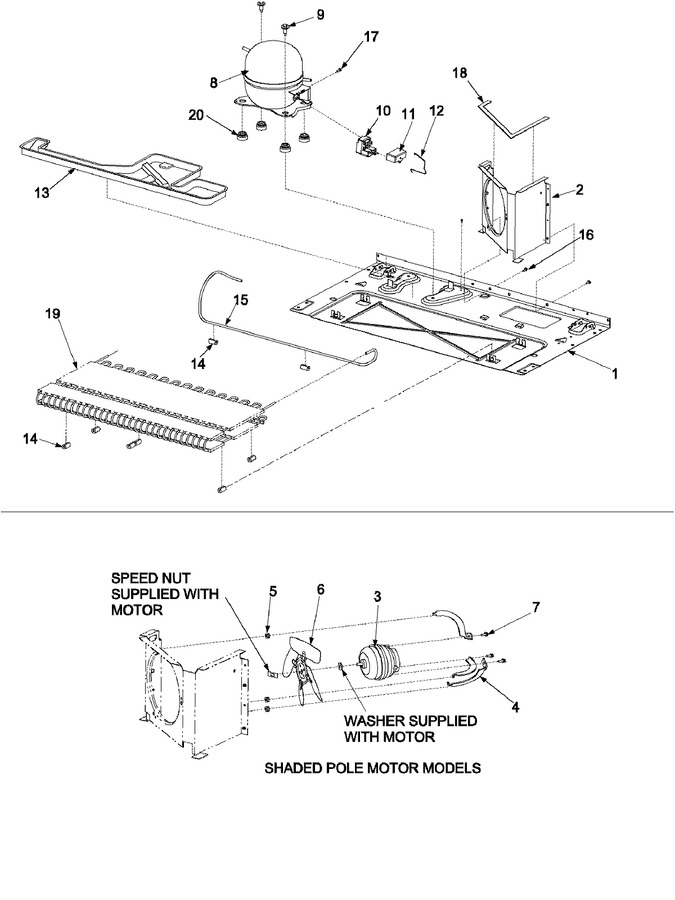

02 - Compressor


03 - Controls


04 - Evaporator Area & Rollers


05 - Freezer Door


06 - Interior Cabinet & Freezer Shelving


07 - Optional Ice Maker Kit-ic511


08 - Refrigerator Door


09 - Refrigerator Shelving


10 - Supplemental Information


11 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67001512		Pan, Base		Appelez-nous	-
2	67001090		Shroud, Condenser Fan		Appelez-nous	-
2	12575306		Shroud, Cond Fan	11	Appelez-nous	-
3	67005104		Motor, Condenser Fan		Appelez-nous	-
4	67003354		Bracket, Condenser Motor		Appelez-nous	-
5	61004743		Grommet, Bracket				$ 5.51
6	WP12587601		Blade, Cond Fan   (Replaces: 12587601)				$ 126.67
7	M0223816		Screw, Tr				$ 5.27
8	12002817		Compressor Kit	11	Appelez-nous	-
8	W10309997		Compressor (tpg1410yxc)x-port   (Replaces: 67005028)				$ 556.12
9	M0221523		Screw, Shldr		Appelez-nous	-
10	W10848274		Overload/relay   (Replaces: 67004815)				$ 177.00
11	WP2201147		Capacitor   (Replaces: 67002815)				$ 128.97
11	WP2201147		Capacitor   (Replaces: 67007162)	11			$ 128.97
12	67004687		Strap, Bale		Appelez-nous	-
12	67007052		Clip, Capacitor	11	Appelez-nous	-
13	WP12579803		Pan, Drain   (Replaces: 67004464)				$ 245.45
14	67005680		Grommet, Condenser   (Replaces: 12578601)				$ 21.05
15	WP12866903		Tube, Discharge   (Replaces: 67004700)			Immediately	$ 133.53
16	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 6.95
17	12992301		Screw   (Replaces: 67006433)	11			$ 7.32
17	12992301		Screw, Tf   (Replaces: M0231604)				$ 7.32
18	WP854334		Seal   (Replaces: 61003210)				$ 13.28
19	WP67006131		Condenser X   (Replaces: 67004682)				$ 366.74
20	WPW10169124		Grommet, Compressor   (Replaces: 67003493)			Immediately	$ 7.19
NI	12973201		Harness, Mc	11	Appelez-nous	-
NI	67005069		Harness, Mc		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
