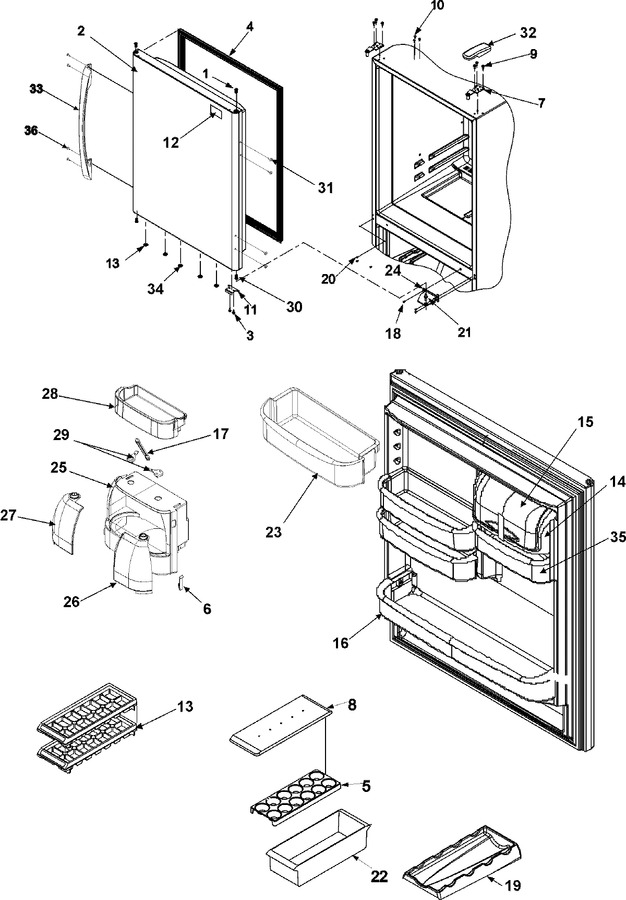

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP67004977		Bushing, Door (wht)   (Replaces: 67003368)				$ 7.81
2	67005235		Door Assy., Ref. Foam (wht)	11	Appelez-nous	-
2	67002622		Ref Dr Foam Assy (wht)		Appelez-nous	-
3	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 7.76
4	W10443317		Gasket, Ref Door (wht)   (Replaces: 67003556)				$ 349.32
4	W10443317		Gasket, Ref Dr (wht)   (Replaces: W10133418)	11			$ 349.32
5	10436506		Tray, Egg				$ 8.28
6	67004602		Hook, Chiller Frame		Appelez-nous	-
7	WP12566606ED		Hinge, Top (blk)   (Replaces: 67001011)			Immediately	$ 44.89
7	WP12566606ED		Top Hinge Assy (blk)   (Replaces: 12566604ED)	11		Immediately	$ 44.89
8	10436404		Lid, Utility				$ 60.85
9	WP489349		Screw   (Replaces: 67006303)	11		Immediately	$ 7.88
9	R9800670		Screw, Tf   (Replaces: M0238731)				$ 9.38
10	WP67001130		Plug, Top Hinge Button (wht)   (Replaces: M0310729)			Immediately	$ 5.98
11	12968202W		Stop, Door (wht)   (Replaces: 67003779)				$ 65.99
12	Y12528501		Nameplate (amana Plus)			Immediately	$ 59.75
13	67001015		Plug, Button (wht)	10	Appelez-nous	-
14	WP67001279		Tray, Dairy   (Replaces: 67001279)			Immediately	$ 83.82
15	WP12744905		Dairy Assy   (Replaces: 67003819)				$ 108.56
16	67004717		Retainer, Door				$ 26.59
17	67004601		Linkage, Chiller Ctr		Appelez-nous	-
18	W11573362		Screw, T. F.   (Replaces: M0226233)				$ 14.02
18	W11573362		Screw   (Replaces: 67006380)	11			$ 14.02
19	67001656		Trivet, Bottle				$ 69.04
20	WP98165		Screw Sm/hex   (Replaces: 67006473)	11			$ 8.00
20	WP489349		Screw, Tf   (Replaces: M0239730)			Immediately	$ 7.88
21	WP67006642		Pin, Center Hinge   (Replaces: 67002734)				$ 7.93
22	10423131		Bin, Utility				$ 31.13
23	67003776		Bucket, Ref Dr (large)		Appelez-nous	-
24	W11689473		Hinge, Center (wht)   (Replaces: 67001168)				$ 66.47
24	W11689473		Hinge, Center (wht)   (Replaces: 67006960)	11			$ 66.47
25	67004720		Frame, Chiller		Appelez-nous	-
26	67004598		Door, Chiller (rt)				$ 36.77
27	67004599		Door, Chiller (lt)		Appelez-nous	-
28	67004600		Bucket, Chiller		Appelez-nous	-
29	67002293		Linkage, Chiller				$ 11.76
30	WP67003638		Closure, Door (wht)   (Replaces: 67003638)			Immediately	$ 7.76
31	WP67001130		Plug, Handle Hole (wht)   (Replaces: 12246601)			Immediately	$ 5.98
31	12991103		Screw, Sm (wht)	11			$ 12.03
32	67001014		Cover, Top Hinge (wht)				$ 21.28
33	W10119666		Handle Assy Face Mount (wht)	11			$ 104.36
33	67006721		Handle, Door (wht)		Appelez-nous	-
34	A3080002		Plug, Button (wht)		Appelez-nous	-
35	WPW10371193		Bucket, Ref Dr (med)   (Replaces: 67003775)			Immediately	$ 74.80
36	67004837		Screw, Hi Torque (wht)		Appelez-nous	-
36	WP67006197		Screw,hi/lo   (Replaces: 12990202)	11			$ 8.06
NI	WP841180A		Tray, Ice   (Replaces: 67001205)			Immediately	$ 45.56
