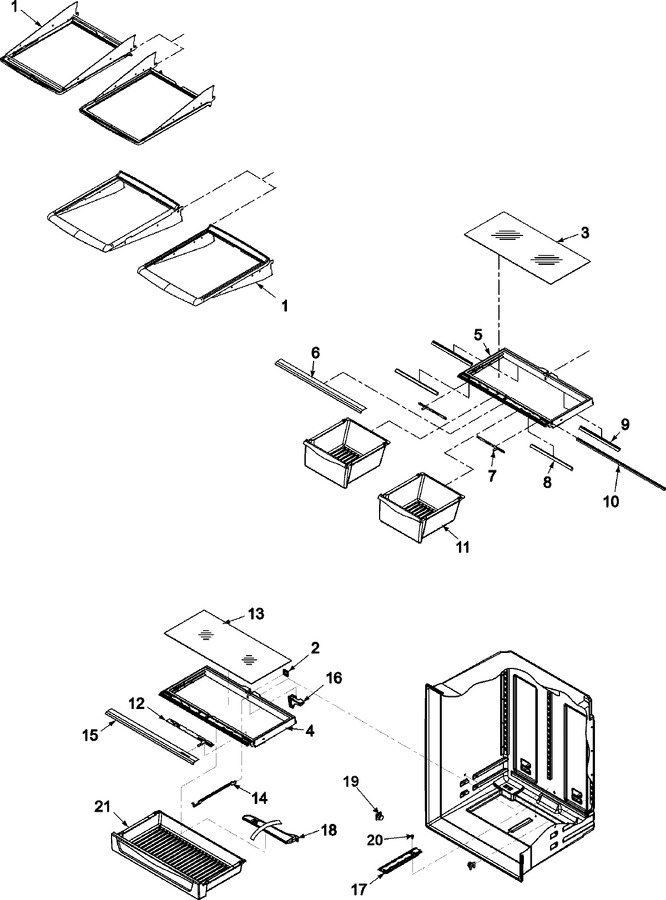

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004637		Shelf, Glide Out				$ 113.49
2	67002005		Gasket, Pantry		Appelez-nous	-
3	WP67006704		Glass, Crisper   (Replaces: 67003852)				$ 212.77
3	WP67006704		Glass, Crisper   (Replaces: 67006704)	11			$ 212.77
4	WP67003854		Frame, Crisper   (Replaces: 67003854)			Immediately	$ 227.55
5	WP67003854		Frame, Crisper   (Replaces: 67003854)			Immediately	$ 227.55
6	67004636		Extr, Crisper Front		Appelez-nous	-
7	WP67005864		Slide, Humidity Control   (Replaces: Y67001287)			Immediately	$ 7.81
8	WP67003417		Seal, Front Crisper   (Replaces: 67003417)				$ 9.24
9	WP67002513		Seal, Rear Crisper   (Replaces: 67002513)				$ 7.60
10	WP12642303WD		Brace, Crisper E-ct   (Replaces: 67002748)				$ 106.91
11	WP67004515		Pan, Crisper   (Replaces: 67004515)	11		Immediately	$ 168.30
11	67004697		Pan, Crisper		Appelez-nous	-
12	67002002		Slide,pantry			Immediately	$ 16.04
13	WP67006704		Glass, Crisper   (Replaces: 67006704)	11			$ 212.77
13	WP67006704		Glass, Crisper   (Replaces: 67003852)				$ 212.77
14	67004555		Bar, Pantry Control		Appelez-nous	-
15	67004554		Extr., Pantry Front		Appelez-nous	-
16	WP12531601		Tunnel,pantry   (Replaces: 67002004)				$ 10.51
17	WP67001719		Track, Deli Drawer   (Replaces: 67001719)			Immediately	$ 8.56
18	67004556		Divider, Pantry				$ 21.41
19	WP12603701		Support, Crisper Frame   (Replaces: 12603701)				$ 10.31
20	W11498983		Knob, Temp Control   (Replaces: 67003791)				$ 29.18
20	M0238636		Screw-sm		Appelez-nous	-
21	67005917		Pan, Pantry	11	Appelez-nous	-
21	67004681		Pan, Pantry		Appelez-nous	-
