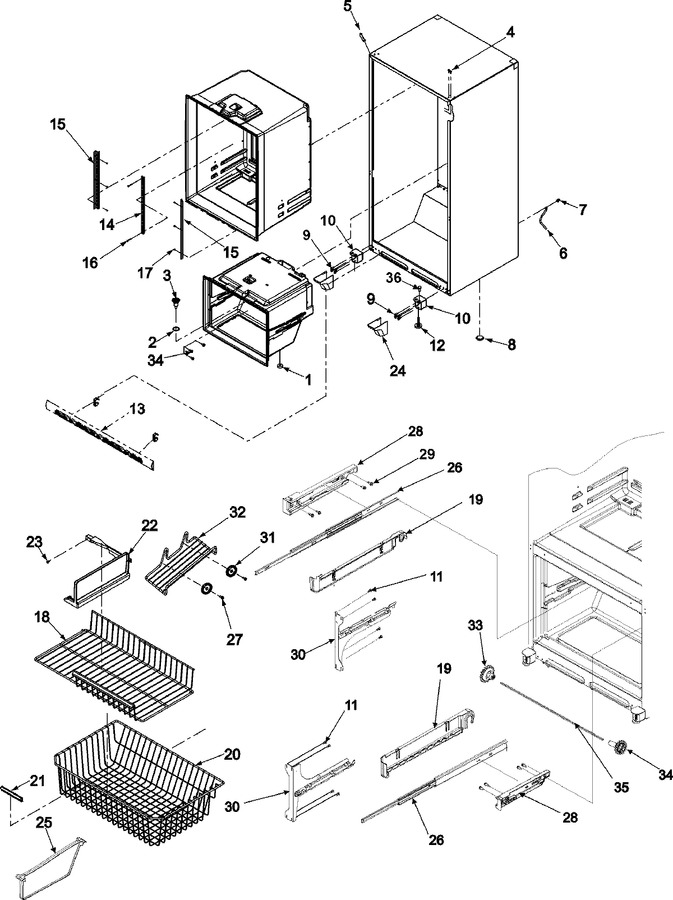

SELECT A DIAGRAM

01 - Cabinet Back


02 - Compressor


03 - Controls


04 - Evaporator Area & Rollers


05 - Freezer Door


06 - Interior Cabinet & Freezer Shelving


07 - Optional Ice Maker Kit-ic511


08 - Refrigerator Door


09 - Refrigerator Shelving


10 - Supplemental Information


11 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPB8381501		Gasket, Drain Tube   (Replaces: B8381501)				$ 7.41
2	WPM0500703		Seal, O Ring   (Replaces: M0500703)				$ 10.92
3	W10815413		Funnel, Drain   (Replaces: D7753903)			Immediately	$ 49.05
4	A4539607		Pop Rivet		Appelez-nous	-
5	67003484		Cover, Corner (wht)				$ 20.40
6	67001066		Tube, Drain				$ 55.82
7	67001067		Clip, Drain Tube				$ 9.20
8	A3076901		Plug-button				$ 5.70
9	67006564		Screw, Sm/hex	11		Immediately	$ 7.69
9	67003858		Screw, Bottom Hinge		Appelez-nous	-
10	67001239		Hinge, Bottom E-ct (wht)		Appelez-nous	-
10	12906303WD		Bracket, Foot Cabinet   (Replaces: 67007174)	11			$ 84.36
11	WP489474		Screw, Sm   (Replaces: 67004892)			Immediately	$ 7.97
11	WP98165		Screw Sm/hex   (Replaces: 67006473)	11			$ 8.00
12	W11177593		Brake, Foot   (Replaces: 10354001)				$ 11.60
13	67002223		Grille Assy., Toe (wht)		Appelez-nous	-
13	WPW10534154		Grille, Toe (wht)   (Replaces: 67006377)	11			$ 146.34
13	12627302		Clip, Toe Grille				$ 5.84
14	67001073		Ladder, Center				$ 54.18
15	67002489		Ladder, L/r Side				$ 71.09
16	W10709795		Screw   (Replaces: 67006360)	11			$ 13.13
16	W10709795		Screw   (Replaces: M0231425)				$ 13.13
17	67006425		Screw, Sm   (Replaces: 67006400)	11		Immediately	$ 6.95
17	67006425		Screw, Sm   (Replaces: M0238642)			Immediately	$ 6.95
18	67002765		Basket, Upper		Appelez-nous	-
19	WPW10280608		Cradle, Basket (lt)   (Replaces: 67004014)				$ 87.76
19	WPW10280613		Cradle, Basket (rt)   (Replaces: 67004015)				$ 87.76
20	WPW10503184		Basket, Frz. (lwr)   (Replaces: 67004079)				$ 238.17
21	10508506		Handle, Basket/shelf		Appelez-nous	-
22	67004127		Divider, Basket (upper)				$ 10.10
23	67006608		Screw	11	Appelez-nous	-
23	67001310		Screw		Appelez-nous	-
24	12561901W		Cover, Lwr Hinge (wht)				$ 6.37
25	67004064		Divider, Basket (lwr)		Appelez-nous	-
26	67004065		Slide, Drawer		Appelez-nous	-
27	WP67006908		Screw   (Replaces: M0230919)			Immediately	$ 7.95
28	67004972		Adapter (rt)				$ 30.98
29	WP489474		Screw, Sm   (Replaces: 67004892)			Immediately	$ 7.97
29	WP489474		Screw, Sm/hex Head   (Replaces: 67006406)	11		Immediately	$ 7.97
30	67004013		Bracket, Drawer Slide (rt)		Appelez-nous	-
30	67004012		Bracket, Drawer Slide (lt)		Appelez-nous	-
31	10972101		Spacer, Ice Rack				$ 7.82
32	12646501		Rack, Ice Tray		Appelez-nous	-
33	12002497		Gear (rt)   (Replaces: 67004430)			Immediately	$ 22.51
34	12002497		Gear (lt)   (Replaces: 67004429)			Immediately	$ 22.51
35	W11028221		Shaft, Rack   (Replaces: 67004017)				$ 31.66
28A	W10284690		Adapter (lt)   (Replaces: 67004971)				$ 73.76
