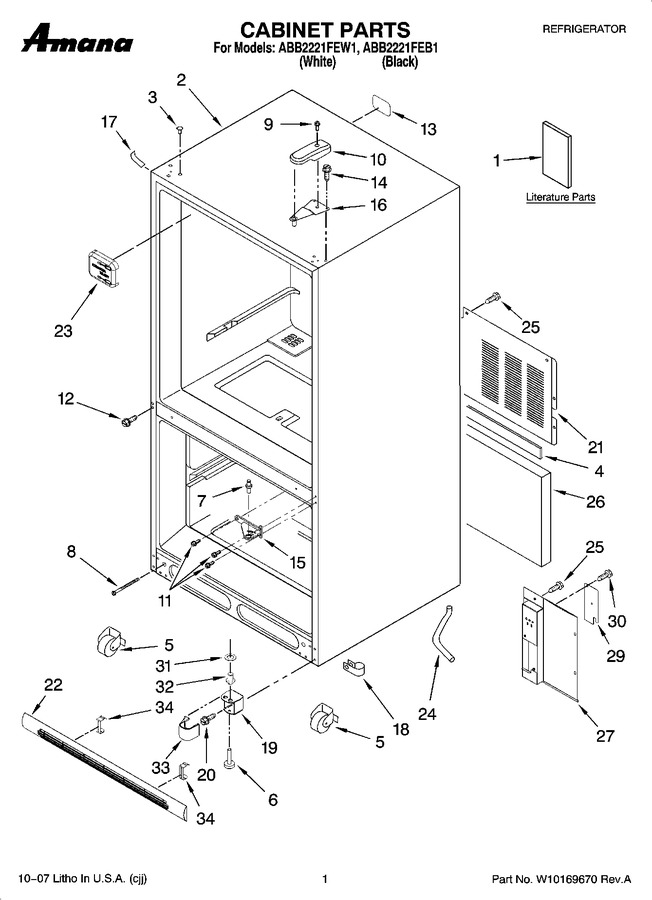

01 - Cabinet Parts


02 - Freezer Liner Parts


03 - Freezer Door Parts


04 - Refrigerator Liner Parts


05 - Refrigerator Door Parts


06 - Unit Parts


07 - Shelf Parts


08 - Icemaker Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10137539		Use & Care Guide		Appelez-nous	-
1	W10123457		Energy Guide		Appelez-nous	-
1	W10169671		Tech Sheet		Appelez-nous	-
3	WP12246608		Plug, Button (3) (black)   (Replaces: 67001131)			Immediately	$ 7.76
3	WP67001130		Plug, Button (3) (white)   (Replaces: 67001130)			Immediately	$ 5.98
4	B5759649		Gasket		Appelez-nous	-
5	67006118		Roller Assembly		Appelez-nous	-
6	W11177593		Foot Brake   (Replaces: 67003868)				$ 11.60
7	WP67006744		Pin, Center Hinge   (Replaces: 67006744)				$ 8.27
8	71003131		Bolt, Adjusting (front Roller)   (Replaces: 67006611)			Immediately	$ 6.74
9	WP8281196		Screw   (Replaces: 67006521)			Immediately	$ 7.19
10	67001012		Cover Hinge (black)				$ 47.34
10	67001014		Cover Hinge (white)				$ 21.28
11	WP489349		Screw   (Replaces: 67005822)			Immediately	$ 7.88
12	WP98165		Screw   (Replaces: 67006473)				$ 8.00
13	W11685757		Label, Fl Tb Plug   (Replaces: 67005064)				$ 7.06
14	WP489349		Screw   (Replaces: 67006303)			Immediately	$ 7.88
15	W11689473		Hinge, Center (white)   (Replaces: 67006960)				$ 66.47
15	WP12607104ED		Hinge, Center (black)   (Replaces: 67007043)				$ 152.73
16	WP12566606ED		Hinge, Top   (Replaces: 12566604ED)			Immediately	$ 44.89
17	67003485		Cover, Corner (black)			Immediately	$ 21.09
17	67003484		Cover, Corner (white)				$ 20.40
18	67001067		Clip, Drain				$ 9.20
19	67001069		Hinge Bottom		Appelez-nous	-
20	67006564		Screw			Immediately	$ 7.69
21	67006101		Cover, Unit				$ 76.68
22	67002223		Grille Assembly (includes Clips) (white)		Appelez-nous	-
22	67002224		Grille Assembly (includes Clips) (black)				$ 38.59
23	WP67001098		Cover, Fl Tb   (Replaces: 67001098)				$ 8.03
24	67001066		Tube, Drain				$ 55.82
25	67006425		Screw (9)			Immediately	$ 6.95
26	67003796		Fiber, Acoustic				$ 19.27
27	67001097		Cover, Water Valve		Appelez-nous	-
29	12479901		Plate, Cover		Appelez-nous	-
30	WP489128		Screw   (Replaces: 67006662)				$ 10.88
31	WPM0274057		Shim, Non Metal   (Replaces: M0274057)			Immediately	$ 8.00
32	67007018		Pin, Bottom Hinge			Immediately	$ 8.21
33	12561901B		Cover, Lwr Hinge (black)				$ 11.62
33	12561901W		Cover, Lwr Hinge (white)				$ 6.37
34	12627302		Clip, Grille				$ 5.84
NI	W10833902		Clamp, Tube   (Replaces: 8170942)				$ 10.99
