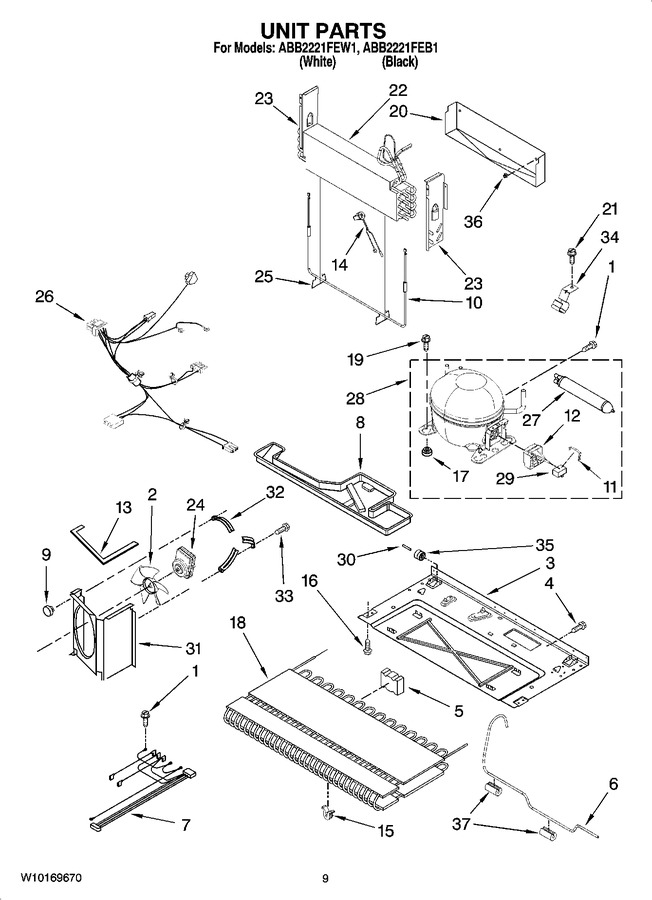

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12992301		Screw   (Replaces: 67006433)				$ 7.32
2	W10156818		Blade, Fan   (Replaces: W10162928)			Immediately	$ 62.11
3	67005744		Basepan		Appelez-nous	-
4	67006425		Screw			Immediately	$ 6.95
5	67005491		Block, Condenser		Appelez-nous	-
6	W10167036		Tube, Discharge		Appelez-nous	-
7	W10119855		Harness, Evap. Heater		Appelez-nous	-
8	67004713		Drain Pan		Appelez-nous	-
9	61004743		Grommet (3)				$ 5.51
10	WP67001794		Evaporator Heater   (Replaces: 67001794)				$ 160.18
11	W10136415		Clip, Capacitor				$ 74.09
12	WPW10197426		Overload (includes Relay)   (Replaces: W10136414)				$ 154.34
13	WP854334		Gasket   (Replaces: 61003210)				$ 13.28
14	WP67003426		Thermostat   (Replaces: 67003426)			Immediately	$ 68.65
15	WPW10137529		Grommet   (Replaces: W10137529)				$ 8.34
16	12992101		Screw   (Replaces: 67006573)		Appelez-nous	-
17	WPW10169124		Grommet (4)   (Replaces: 67003493)			Immediately	$ 7.19
18	WP67006132		Condenser   (Replaces: 67006132)				$ 304.52
19	12846902		Screw   (Replaces: 67006432)				$ 12.99
20	WPW10292802		Tray, Drip   (Replaces: 67001080)				$ 176.74
21	WP33001882		Screw   (Replaces: 67006737)				$ 79.72
22	12001919		Evaporator			Immediately	$ 391.29
23	67001084		Dam (right Side)		Appelez-nous	-
23	67001083		Dam (left Side)		Appelez-nous	-
24	W11613295		Motor, Fan   (Replaces: 67004432)			Immediately	$ 136.84
25	W11673433		Clip, Heater   (Replaces: 10428101)				$ 141.12
26	13060302		Harness, Mc (includes Power Cord)   (Replaces: 13060301)				$ 309.47
27	23178454		Drier (service)		Appelez-nous	-
28	W10130129		Compressor		Appelez-nous	-
29	WPW10662129		Capacitor   (Replaces: 2264017)			Immediately	$ 58.86
30	67006434		Axle, Roller			Immediately	$ 7.52
31	W10153406		Shroud		Appelez-nous	-
32	WP67004953		Bracket, Fan Motor   (Replaces: 67004953)				$ 68.83
33	WP67004954		Screw   (Replaces: 67004954)				$ 7.79
34	10547003		Clip, Drier		Appelez-nous	-
35	WP67005149		Roller   (Replaces: 67005149)			Immediately	$ 22.02
36	10623002		Clip, Evap				$ 11.53
37	67005680		Grommet				$ 21.05
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
NI	978026		Valve, Access (5/16``)			Immediately	$ 128.09
NI	SF5538		Valve, Access(3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2``)		Appelez-nous	-
NI	978029		Valve, Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 130.71
NI	876764		Valve, Access(3/16``)			Immediately	$ 91.35
