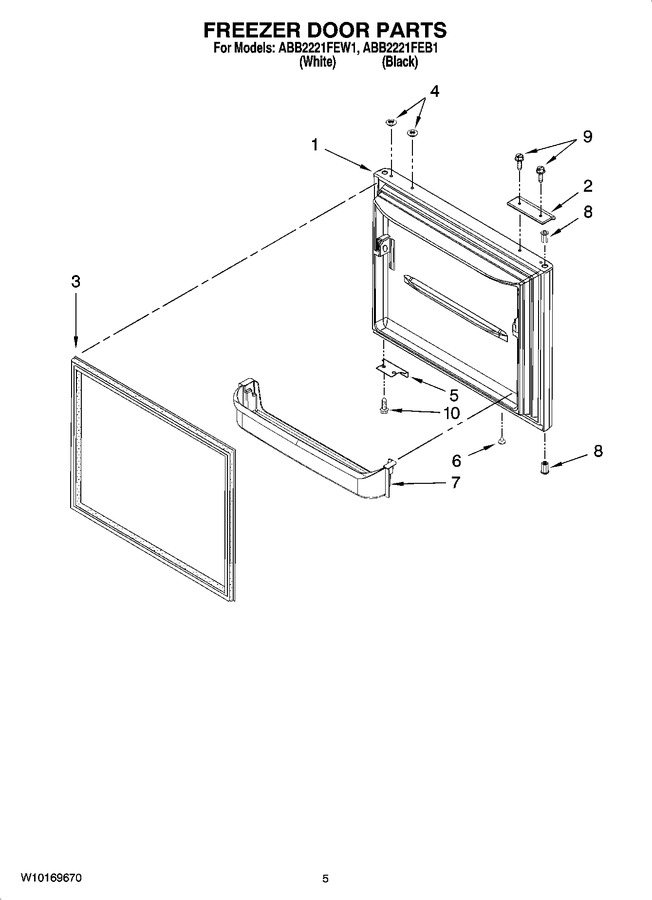

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10168717 | Freezer Door (w/ Insulation) (white) |
|
- | |||||
| 1 | W10168719 | Freezer Door (w/ Insulation) (black) |
|
- | |||||
| 2 | 67005125 | Handle (black) |
|
$ 142.03 | |||||
| 2 | WP67005140 | Handle (white) (Replaces: 67005140) |
|
Immediately | $ 148.34 | ||||
| 3 | WPW10436250 | Door Gasket, Magnetic (black) (Replaces: W10130587) |
|
Immediately | $ 347.99 | ||||
| 3 | W10443315 | Door Gasket, Magnetic (white) (Replaces: W10130894) |
|
$ 193.98 | |||||
| 4 | WP12246608 | Plug, Hole (black) (Replaces: 67001131) |
|
Immediately | $ 7.76 | ||||
| 4 | WP67001130 | Plug, Hole (white) (Replaces: 67001130) |
|
Immediately | $ 5.98 | ||||
| 5 | W11708403 | Stop, Door (black) (Replaces: 67003780) |
|
Immediately | $ 14.05 | ||||
| 5 | 12968202W | Stop, Door (white) (Replaces: 67003779) |
|
$ 65.99 | |||||
| 6 | 67004838 | Plug, Button (2) (black) (Replaces: W10153326) |
|
$ 10.68 | |||||
| 6 | 10712401 | Plug, Button (2) (white) |
|
$ 7.79 | |||||
| 7 | 67003934 | Retainer |
|
$ 22.73 | |||||
| 8 | WP67004977 | Bushing (white) (Replaces: 67004977) |
|
$ 7.81 | |||||
| 8 | 67004978 | Bushing (black) |
|
$ 21.05 | |||||
| 9 | WPW10348409 | Screw (2) (Replaces: 67006831) |
|
Immediately | $ 7.76 | ||||
| 10 | WP98165 | Screw (2) (Replaces: 67006287) |
|
$ 8.00 |
