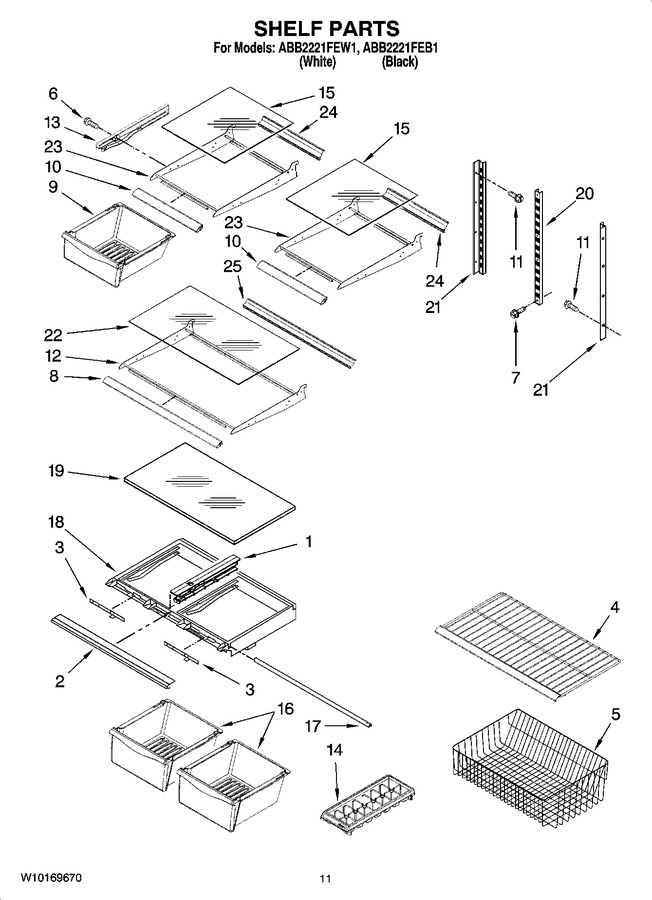

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10671238 | Rail, Center Crisper (Replaces: 67001057) |
|
Immediately | $ 112.82 | ||||
| 2 | 67004420 | Trim, Crisper |
|
- | |||||
| 3 | WP67005864 | Slide, Humidity Control (Replaces: 67005864) |
|
Immediately | $ 7.81 | ||||
| 4 | 67001075 | Shelf, Freezer |
|
- | |||||
| 5 | 12754804 | Basket, Freezer (lower) |
|
$ 97.34 | |||||
| 6 | W11233072 | Screw (12) (Replaces: 67006626) |
|
Immediately | $ 14.02 | ||||
| 7 | W10709795 | Screw (Replaces: 67006360) |
|
$ 13.13 | |||||
| 8 | 10459928 | Trim, Front Full Shelf |
|
- | |||||
| 9 | WP67001314 | Pan, Deli (Replaces: 67001314) |
|
$ 155.33 | |||||
| 10 | 10459927 | Trim, Front (2) |
|
- | |||||
| 11 | 67006425 | Screw (Replaces: 67006400) |
|
Immediately | $ 6.95 | ||||
| 12 | 10480412 | Shelf, Full |
|
- | |||||
| 13 | WP67001053 | Glide Rh (Replaces: 67001053) |
|
Immediately | $ 9.24 | ||||
| 13 | WP67001054 | Glide Lh (Replaces: 67001054) |
|
Immediately | $ 8.40 | ||||
| 14 | WP841180A | Tray, Ice Cube (Replaces: D7725402) |
|
Immediately | $ 45.56 | ||||
| 15 | 10370099 | Glass, Shelf (2) |
|
- | |||||
| 16 | WP67002633 | Crisper (2) (Replaces: 67002633) |
|
Immediately | $ 149.12 | ||||
| 17 | WP12227303WD | Brace, Crisper (Replaces: 67001059) |
|
$ 105.95 | |||||
| 18 | WPW10568041 | Frame, Crisper (Replaces: 67001056) |
|
Immediately | $ 137.23 | ||||
| 19 | WP67006878 | Glass, Crisper Cover (Replaces: 67006878) |
|
Immediately | $ 185.19 | ||||
| 20 | 67001073 | Ladder, Center |
|
$ 54.18 | |||||
| 21 | 67001317 | Ladder, Side |
|
$ 39.13 | |||||
| 22 | 10460108 | Glass, Full Shelf |
|
$ 29.98 | |||||
| 23 | 10460107 | Shelf (2) |
|
- | |||||
| 24 | 10946008 | Trim, Rear (2) |
|
- | |||||
| 25 | 10459806 | Trim, Rear Full Shelf |
|
- |
