Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 31-51654 Pm Mini Wiring Manual Appelez-nous -
1 49-60205 Pm Owners Manual Appelez-nous -
3 WR01X10627 Screw Mxp10f750z Appelez-nous -
4 WR01X10496 3-32 X 1/4 Set Screw Appelez-nous -
12 WR01A00225 Stop Door Black   (Replaces: WR02X10814) Special Order $ 12.40

14 WR24X10170 Gasket Door Fz Appelez-nous -
15 WR02X10780 Cam Closure Ff Black Appelez-nous -
26 WR71X10633 Guide Ice Appelez-nous -
31 WR01L03203 Grille Recess Bk   (Replaces: WR17X11655) Special Order $ 31.76

36 WR01F01784 Solenoid Asm   (Replaces: WR62X10055) Special Order $ 88.99

45 WR2X8818 Retainer Recess Door Appelez-nous -
56 WG03A03944 Light Dispenser   (Replaces: WR02X12208) In-Stock Immediately $ 67.41

58 WR17X12116 Housing Shield Disp Appelez-nous -
61 WR02X12007 Socket Lamp Appelez-nous -
61 WR2X9561 Lamp Socket Appelez-nous -
62 WR01L01914 Door Recess Asm   (Replaces: WR17X11653) Special Order $ 65.21

63 WG03A00047 Spring Recess Door   (Replaces: WR02X10585) In-Stock Immediately $ 3.97

67 WR01L00935 Crank Door Recess   (Replaces: WR17X10706) Special Order $ 12.71

69 WR17X12084 Funnel Ice Disp Bk Appelez-nous -
72 WR01F03637 Switch   (Replaces: WR23X10224) In-Stock Immediately $ 17.47

74 WR02X10584 Spring Funnel Appelez-nous -
80 WR01F02845 Union Connector   (Replaces: WR02X11330) In-Stock Immediately $ 19.06

93 WR55X10279 Interface Disp Asm Bk Appelez-nous -
122 WR71X10256 Module Support Fz Appelez-nous -
123 WR71X10255 Module Support Fz Appelez-nous -
124 WR21X10111 Basket Wire Tiltout Fz Appelez-nous -
125 WR21X10110 Basket Wire Tiltout Fz Appelez-nous -
900 WR78X11878 Door Asm Clad Fz 25 Appelez-nous -
903 WR01X10234 Thimble Door Btm Fz Blac Appelez-nous -
904 WR01X10610 Scr 10-32 Gx Pnt20 1 S L Appelez-nous -
911 WR01X10233 Thimble Door Top Black Appelez-nous -
1006 WR12X10065 Handle Door Ss Appelez-nous -
1007 WR02X10056 Support Handle Ss Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

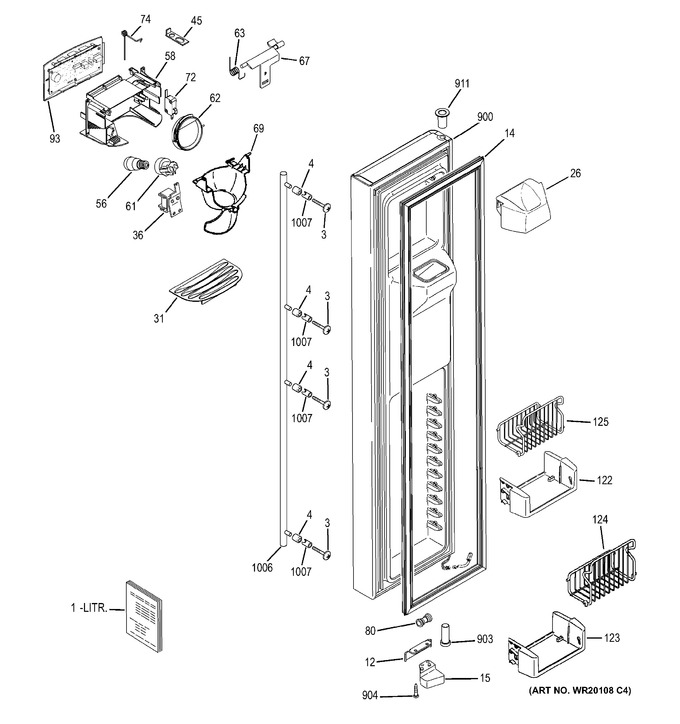

Diagram for ZFSB25DXCSS
