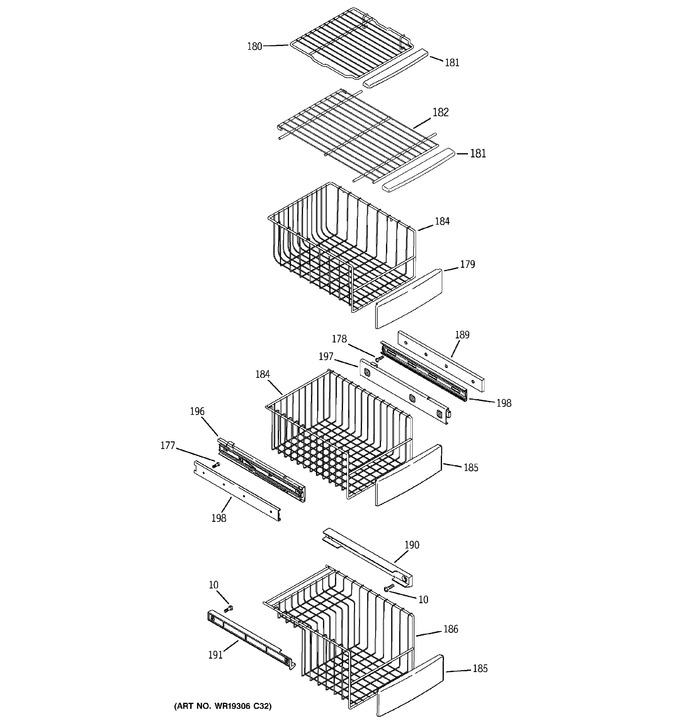

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WR01X10065		Screw 10-32 Gxtt Flp 595		Appelez-nous	-
177	WR01X10613		Scr 8-18 Ab Pnt20 7/16 S		Appelez-nous	-
178	WR01X10614		Scr 8-18 Ab Pnt20 13/16		Appelez-nous	-
179	WR12X10624		Handle		Appelez-nous	-
180	WR71X10527		Shelf Fixed Fz		Appelez-nous	-
181	WR38X10214		Trim Shelf Fz		Appelez-nous	-
182	WR71X10634		Shelf Adjustable Fz		Appelez-nous	-
184	WR01L00138		Basket   (Replaces: WR21X10156)				$ 64.62
185	WR12X10625		Handle		Appelez-nous	-
186	WR21X10041		Basket Wire Fz		Appelez-nous	-
189	WR17X10945		Spacer		Appelez-nous	-
190	WR72X10066		Support Slide Basket		Appelez-nous	-
191	WR72X10067		Support Slide Basket		Appelez-nous	-
196	WR72X10068		Slide & Bracket Assy L H		Appelez-nous	-
197	WR72X10069		Slide & Bracket Assy		Appelez-nous	-
198	WR72X10070		Slide Liner		Appelez-nous	-
