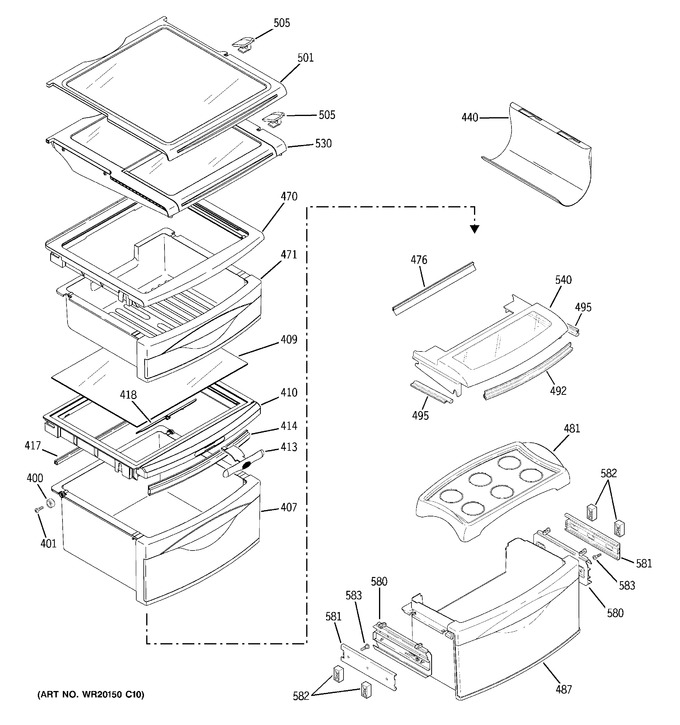

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
400	WR01F01728		Wheel Pan Cover   (Replaces: WR01X10209)				$ 3.97
401	WR01X10583		Scr 10-16		Appelez-nous	-
407	WR01L00428		Pan Middle Chill Asm   (Replaces: WR32X10572)				$ 90.46
409	WR01L01061		Cover Pan Glass   (Replaces: WR32X10200)			Immediately	$ 14.99
410	WR01L11327		Cover Middle Pan   (Replaces: WR32X10197)				$ 75.96
413	WR02X10650		Humidity Control		Appelez-nous	-
414	WR01L04170		Gasket Pan Crv Front   (Replaces: WR14X10059)				$ 7.94
417	WR14X10058		Gasket Pan Crv Rear		Appelez-nous	-
418	WR02X10633		Slide Middle Pan Cover		Appelez-nous	-
440	WR17X10793		Wine Rack		Appelez-nous	-
470	WR32X10579		Cover Top Pan Asm		Appelez-nous	-
471	WR32X10338		Pan Asm Top		Appelez-nous	-
476	WR14X10169		Gasket Pan Cvr Front		Appelez-nous	-
481	WR31X10036		Tray Custom Cool		Appelez-nous	-
487	WR32X10508		Pan Frame Asm		Appelez-nous	-
492	WR14X10170		Gasket Rear		Appelez-nous	-
495	WR14X10159		Seal Sides Chill		Appelez-nous	-
501	WR01L04325		Shelf Slideout Assy   (Replaces: WR71X10296)				$ 83.16
505	WR01A00596		Stop Shelf   (Replaces: WR02X10662)				$ 28.59
530	WR71X10615		Shelf Tuckaway Asm		Appelez-nous	-
540	WR31X10038		Cover Pan Asm		Appelez-nous	-
580	WR72X10194		Slide And Bracket Asm R		Appelez-nous	-
580	WR72X10193		Slide And Bracket Asm L		Appelez-nous	-
581	WR72X10195		Slide Liner		Appelez-nous	-
582	WR72X10239		Spacer		Appelez-nous	-
583	WR01X10629		Scr 8-18 Ab Hw 1/2 S		Appelez-nous	-
