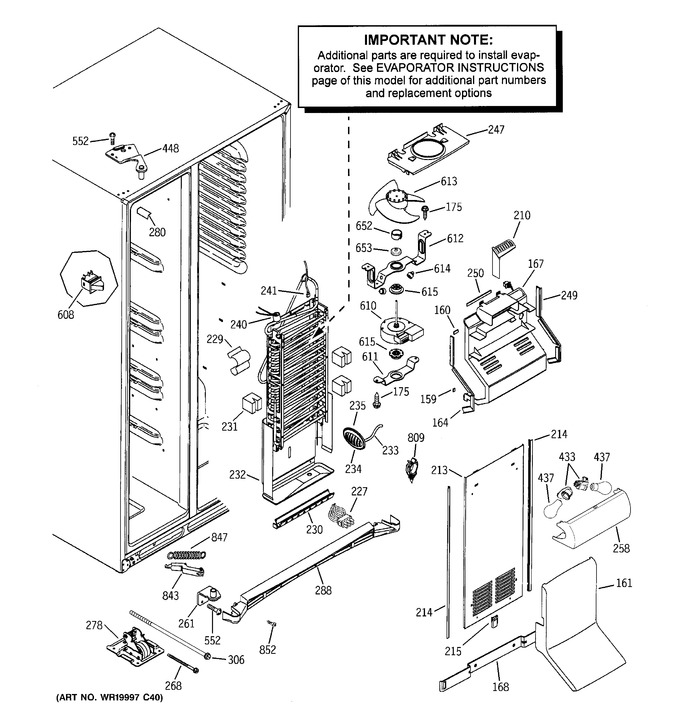

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 159 | WR14X10067 | Foam Strip Se Adh |
|
- | |||||
| 160 | WR14X10068 | Foam Strip Se Adh |
|
- | |||||
| 161 | WR17X10899 | Tower Air Fz Lower |
|
- | |||||
| 164 | WR14X10194 | Gasket Plenum |
|
- | |||||
| 167 | WR17X11895 | Plenum Fan Evaporator |
|
- | |||||
| 168 | WR02X10674 | Bracket Fz Tower Lower |
|
- | |||||
| 175 | WR01X10035 | Screw 8-18 Ab Ihw 5/8 S |
|
- | |||||
| 210 | WR74X10131 | Guard Wiring |
|
- | |||||
| 213 | WR17X11666 | Cover Evaporator Front |
|
- | |||||
| 214 | WR14X10193 | Gasket Evap Cover |
|
- | |||||
| 215 | WR01X10211 | Bracket Fz Tower Upper |
|
- | |||||
| 227 | WR23X10487 | Harness Ac Fz Intermedia |
|
- | |||||
| 229 | WR01A00194 | Clip Evap Thermistor (Replaces: WR02X10552) |
|
$ 4.17 | |||||
| 230 | WG03F00771 | Heater & Bracket Assy (Replaces: WR51X10055) |
|
Immediately | $ 133.52 | ||||
| 231 | WR02X10669 | Block Evap Seal |
|
- | |||||
| 232 | WR17X10811 | Shield Assy Trough |
|
- | |||||
| 233 | WR55X10026 | Sensor Temp Fz |
|
- | |||||
| 234 | WR01L04066 | Grille Sensor (Replaces: WR02X10647) |
|
$ 3.97 | |||||
| 235 | WR01L04393 | Shunt Sensor (Replaces: WR02X10668) |
|
Immediately | $ 15.88 | ||||
| 240 | WR01F02867 | Thermostat Def (Replaces: WR50X10065) |
|
Immediately | $ 45.00 | ||||
| 241 | WR01F01730 | Sensor Temp Ff (Replaces: WR55X10025) |
|
Immediately | $ 16.29 | ||||
| 247 | WR17X12642 | Orifice Fan Asm |
|
- | |||||
| 249 | WR14X10195 | Gasket Plenum |
|
- | |||||
| 250 | WR14X10069 | Foam Strip Se Adh |
|
- | |||||
| 258 | WR17X11480 | Shield Light Fz |
|
- | |||||
| 261 | WR13X10160 | Hinge Btm & Pin Assy |
|
- | |||||
| 268 | WR01X10609 | Screw Mobility |
|
- | |||||
| 278 | WR01L02982 | Mobility Front Asm (Replaces: WR02X12274) |
|
Immediately | $ 19.06 | ||||
| 280 | WR01L01085 | Cap Corner Oc Black (Replaces: WR02X10781) |
|
$ 4.20 | |||||
| 288 | WR01L02255 | Grille Base (Replaces: WR74X10270) |
|
$ 18.76 | |||||
| 306 | WR02X12271 | Screw Mobility |
|
- | |||||
| 433 | WR01F01775 | Socket & Terminal Asm (Replaces: WR2X9391) |
|
$ 8.34 | |||||
| 437 | 40A15 | 40watt 15amp |
|
Immediately | $ 1.98 | ||||
| 448 | WR13X10363 | Hinge Top & Pin Asm Fz |
|
- | |||||
| 552 | WR01X10631 | Scr 12-24 Tt Ovt .900 S |
|
- | |||||
| 608 | WG03F05844 | Switch Light (Replaces: WR23X10179) |
|
Immediately | $ 65.21 | ||||
| 610 | WR01F04639 | Motor Dc Evap Fan Asm (Replaces: WR60X10224) |
|
Immediately | $ 87.98 | ||||
| 611 | WR17X12635 | Bottom Bracket Evap |
|
- | |||||
| 612 | WR01X10448 | Scr 8-19 Hi/lo Trp 1 S |
|
- | |||||
| 613 | WR60X10208 | Blade Evap Fan Asm |
|
- | |||||
| 614 | WR01A00163 | Bumper (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 615 | WG03F00306 | Grommet Evap Fan (Replaces: WR02X12008) |
|
Immediately | $ 7.24 | ||||
| 652 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.97 | |||||
| 653 | WR01F00744 | Cap Dust (Replaces: WR02X10322) |
|
$ 37.17 | |||||
| 809 | WR1X1936 | Fastener Water Tube |
|
$ 7.35 | |||||
| 843 | WR01A00450 | Lever Assy Fz Black (Replaces: WR11X10010) |
|
$ 9.13 | |||||
| 847 | WG03F00903 | Spring Closure (Replaces: WR1X2027) |
|
$ 68.16 | |||||
| 852 | WR01A00686 | Scr 8-18 Ab Pnp 5/8 S (Replaces: WR01X10858) |
|
$ 3.97 |
