10 - Case Parts


1 - Freezer Door


2 - Machine Compartment


3 - Fresh Food Door


4 - Freezer Section


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Quick Chill


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart

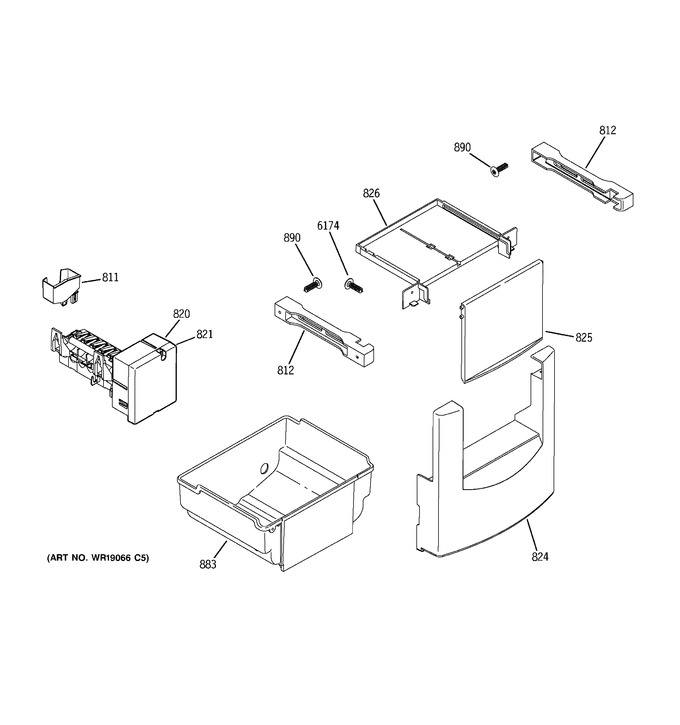

811	WR01L01185		Cup Fill Im   (Replaces: WR29X10064)				$ 10.52
812	WR72X10104		Bucket Slide		Appelez-nous	-
820	IM6D		Ice Maker Asm   (Replaces: WR30X10012)			Immediately	$ 274.39
821	WR29X10082		Cover Icemaker		Appelez-nous	-
824	WR17X11218		Ice Bin Frt		Appelez-nous	-
825	WR17X12547		Door Ice Bin		Appelez-nous	-
826	WR71X10420		Ice Bin Door Track		Appelez-nous	-
883	WR30X10033		Bucket Ice Disp		Appelez-nous	-
890	WG04A01239		#10x1 Ph Sms   (Replaces: WD2X295)				$ 3.97
6174	WR01X10310		6-20 X 1 Ss Ph Phil		Appelez-nous	-
