Diagram # Part Number Description Series Availability Ships Price Add to Cart
317 WR71X10814 Encapsulated Shelf Asm Appelez-nous -
333 WR71X10866 Quick Shelf Asm Appelez-nous -
374 WR32X10325 Snack Pan Asm Appelez-nous -
376 WR02X12854 Snack Pan Wire Spt 42 Appelez-nous -
377 WR71X10817 Shelf Snack Pan Asm 42 Appelez-nous -
384 WR40X10040 Seal Pan Front Appelez-nous -
607 WR32X10326 Veg Pan Asm Appelez-nous -
608 WR71X10434 Veg Pan Front Asm Appelez-nous -
609 WR72X10249 Veg Pan Wire Support Appelez-nous -
614 WR32X10692 Shelf Asm Pan Top Appelez-nous -
615 WR02X12849 Pan Rear Seal 42 Appelez-nous -
616 WR74X10101 Cover Water Tank Appelez-nous -
617 WR72X10329 Pan Side Support Rh Appelez-nous -
621 WR72X10330 Pan Side Support Lh Appelez-nous -
4107 WR72X268 Slide Support Fz Appelez-nous -
6174 WR01X10310 6-20 X 1 Ss Ph Phil Appelez-nous -
8141 WR17X10660 Wine Rack Clear Lexan Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

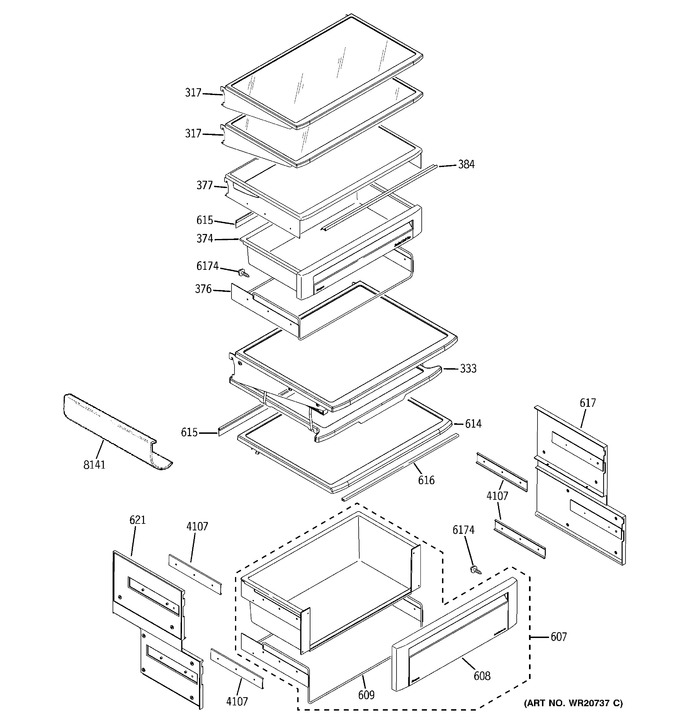

Diagram for ZIS420NXA
