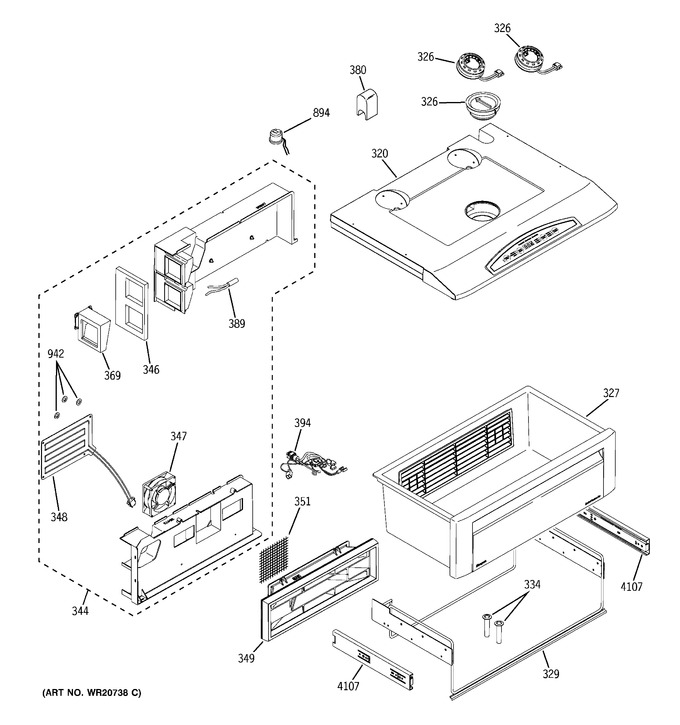

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
320	WR32X10688		Qc Mullion Asm 42		Appelez-nous	-
326	WR02X11198		Qc Halogen Lamp Asm		Appelez-nous	-
327	WR32X10552		Quick Chill Pan Assy 42"		Appelez-nous	-
329	WR71X10778		Veg Wire Frame Modified		Appelez-nous	-
334	WR2X8472		Tube		Appelez-nous	-
344	WG03F00018		Qc Housing Asm 42   (Replaces: WR31X10021)				$ 660.17
346	WG03F00512		Qc Seal Damper   (Replaces: WR60X10116)				$ 17.01
347	WR60X10227		Fan Chill		Appelez-nous	-
348	WR51X10098		Heater Thaw 36/42/48		Appelez-nous	-
349	WR31X10024		Diffusor Case Asm		Appelez-nous	-
351	WR01X10298		Wire Mesh Qc Hsg		Appelez-nous	-
369	WR01L04899		Damper Assy Desupply   (Replaces: WR60X10063)				$ 151.81
380	WR02X11449		Cover Water Line		Appelez-nous	-
389	WR55X10030		Sensor Temperature		Appelez-nous	-
394	WR23X10267		Harness Qc		Appelez-nous	-
894	WR50X10092		Thermostat Light		Appelez-nous	-
942	WR01X10239		Washer Retainer Chill		Appelez-nous	-
4107	WR72X268		Slide Support Fz		Appelez-nous	-
	WG02F11798		Transformer   (Replaces: WG03F05782)				$ 165.31
	WG04A00766		Inverter W/jumpers Kit			Immediately	$ 542.82
	WR01F02256		Moteur			Immediately	$ 139.84
	WR01F02880		Board Asm Main Control			Immediately	$ 329.91
	WR01F02892		Condenser Asm				$ 403.54
	WG03F00018		Air Handler Asm				$ 660.17
	WG03F07361		Pan Drain Asm   (Replaces: WR01L08090)				$ 369.94
	WG03F00154		Compressor Repl Kit (charged)				$ 1,117.00
	WG02F11798		Led Transformer   (Replaces: WG03F00649)				$ 165.31
	WG03F00684		Water Valve Ass''m				$ 128.06
	WG03F03655		Ens Tube				$ 208.86
	WG03F04125		Evaporator Sxs,monogram				$ 1,108.16

    View Diagram in Separate Window       Print Part List
