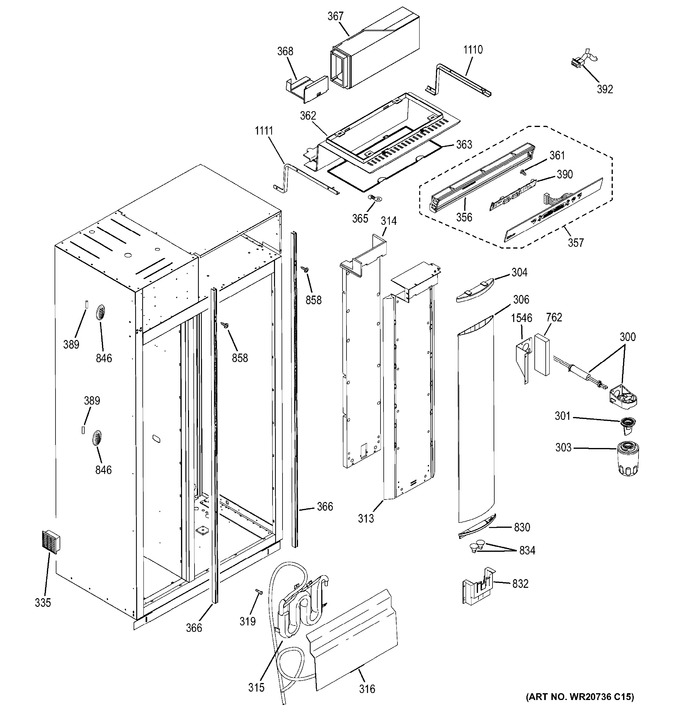

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 300 | WR02X13046 | Water Filter & Head Asm |
|
- | |||||
| 301 | WG03L10111 | Cap Filter Bypass (Replaces: WR02X11705) |
|
Immediately | $ 19.97 | ||||
| 303 | PMMWF | Water Filt Ref Cyst (Replaces: MWF) |
|
Immediately | $ 81.88 | ||||
| 304 | WR02X12844 | Cover Cap End |
|
- | |||||
| 306 | WR17X12620 | Light Column Asm 36/42fz |
|
- | |||||
| 313 | WR17X12551 | Air Tower Ff 42/48 |
|
- | |||||
| 314 | WR02X13141 | Foam Airtower Asm |
|
- | |||||
| 315 | WG03F03757 | Water Tank Asm (Replaces: WR17X12702) |
|
$ 60.18 | |||||
| 316 | WR02X13153 | Cover Water Tank |
|
- | |||||
| 319 | WR01X10188 | Screw Trim (self Drillin |
|
- | |||||
| 335 | WR02X11199 | Qc Inlet Duct Fz |
|
- | |||||
| 356 | WR74X10257 | Housing Control |
|
- | |||||
| 361 | WR02X11200 | 4-40 X 1/4 Ph Sms |
|
- | |||||
| 362 | WR17X11212 | Ceiling Light Bracket |
|
- | |||||
| 363 | WR02X12851 | Ceiling Light Shield |
|
- | |||||
| 365 | WR02X11203 | Latch Light Shield |
|
- | |||||
| 366 | WR17X12524 | Track Ff Shelf |
|
- | |||||
| 367 | WR02X12860 | Damper Foam Asm 42 |
|
- | |||||
| 368 | WG03A00020 | Ff Damper Repair (Replaces: WR49X10107) |
|
$ 240.88 | |||||
| 389 | WR55X10030 | Sensor Temperature |
|
- | |||||
| 390 | WR55X11007 | Board Led Light Asm |
|
- | |||||
| 390 | WR55X10820 | Board Led Light Asm |
|
- | |||||
| 392 | WR23X10607 | Harness Hmi Ff Sxs |
|
- | |||||
| 762 | WR14X10296 | Foam Strip Front |
|
- | |||||
| 830 | WR17X12546 | Bulb Housing Asm 36/42fz |
|
- | |||||
| 832 | WR02X12199 | Bulb Housing |
|
- | |||||
| 834 | WR02X11183 | Halogen Bulb Light Colum |
|
- | |||||
| 846 | WR02X12839 | Grille Sensor |
|
- | |||||
| 858 | WR01X10840 | Scr 10-24 F Pnp 1.25s |
|
- | |||||
| 1110 | WR01X10927 | Trim Ceiling Bracket Rh |
|
- | |||||
| 1111 | WR01X10928 | Trim Ceiling Bracket Lh |
|
- | |||||
| 1546 | WR02X12828 | Water Filter Bracket |
|
- |
