SELECT A DIAGRAM

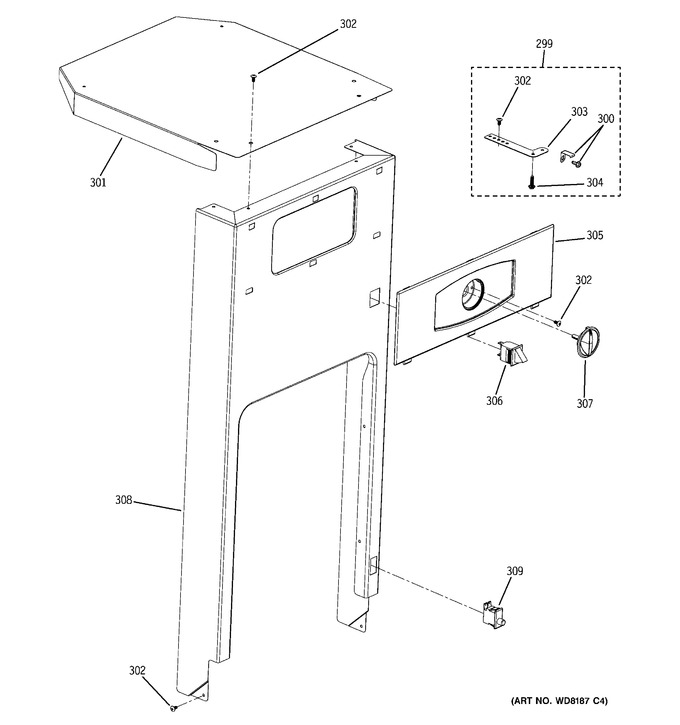

1 - Cabinet & Control Parts
2 - Frame Parts
3 - Container Parts
4 - Motor & Drive Parts
5 - Powerscrew & Ram Parts
6 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 299 | WC36X10071 | Mounting Bracket Asm Kit |
|
- | |||||
| 300 | WC02X10025 | Side Mount Clips/screws |
|
- | |||||
| 301 | WC31X10001 | Top Cover |
|
- | |||||
| 302 | WC01X10013 | Screw St4.2x8_bb |
|
- | |||||
| 303 | WC02X10009 | Bracket Retainer |
|
- | |||||
| 304 | WC01X10020 | Screw St4.2*15 |
|
- | |||||
| 305 | WC20X20020 | Control Panel |
|
- | |||||
| 306 | WC21X10006 | Door Tilt Switch |
|
- | |||||
| 307 | WC02X10007 | Knob |
|
- | |||||
| 308 | WC33X10005 | Control Panel |
|
- | |||||
| 309 | WC21X10007 | Start Switch |
|
- |
