SELECT A DIAGRAM

1 - Cabinet & Control Parts


2 - Frame Parts


3 - Container Parts


4 - Motor & Drive Parts


5 - Powerscrew & Ram Parts


6 - Accessory Parts

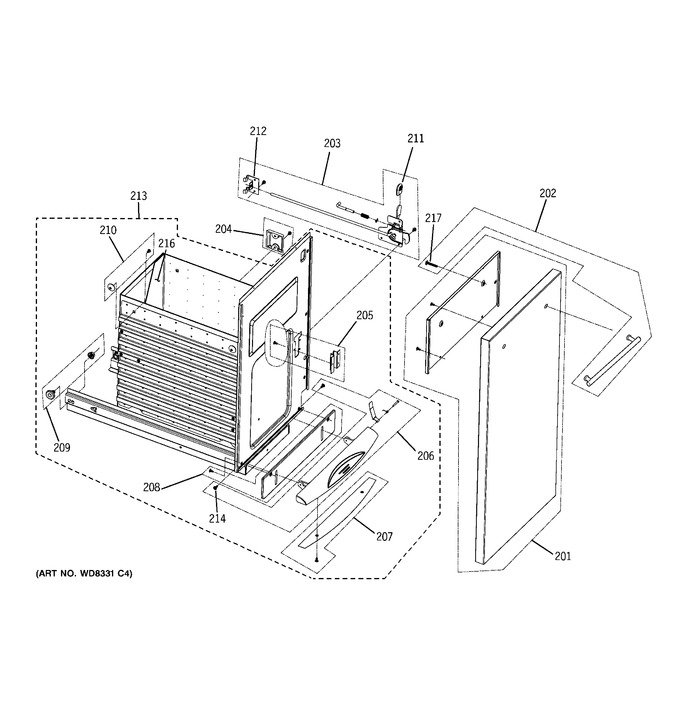

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
201	WC36X10062		Door Asm Ss		Appelez-nous	-
202	WC10X10005		Handle Asm Ss - Monogram		Appelez-nous	-
203	WC17X10013		Latch Asm		Appelez-nous	-
204	WC02X10017		Bumper Asm		Appelez-nous	-
205	WC02X10018		Latch Plate Asm		Appelez-nous	-
206	WC17X10014		Pedal Foot Asm Bb		Appelez-nous	-
207	WC17X10015		Plate Bottom		Appelez-nous	-
208	WC17X10019		Toe Kick Door Asm Ss		Appelez-nous	-
208	WC17X10016		Toe Kick Asm		Appelez-nous	-
209	WC02X10019		Drawer Roller Asm		Appelez-nous	-
210	WC02X10022		Retainer		Appelez-nous	-
211	WC02X10015		Latch Grip		Appelez-nous	-
212	WC02X10016		Latch Rear Guide		Appelez-nous	-
213	WC29X10005		Drawer Asm - Ss		Appelez-nous	-
214	WC01X10034		Shoulder Screw Foot		Appelez-nous	-
216	WC29X10007		Rh Drawer Panel Asm		Appelez-nous	-
217	WC01X10035		Screw Handle		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
