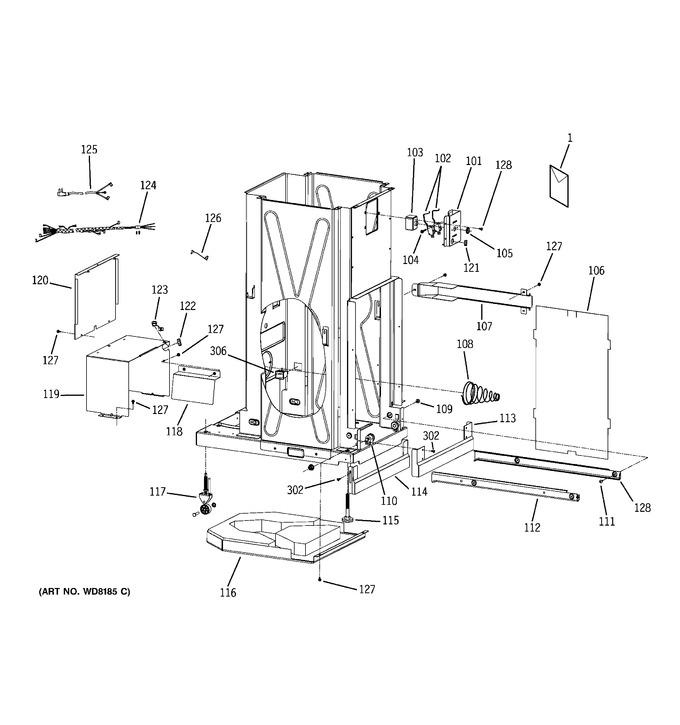

1 - Cabinet & Control Parts


2 - Frame Parts


3 - Container Parts


4 - Motor & Drive Parts


5 - Powerscrew & Ram Parts


6 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-55062-1		Pm Manual Use & Care		Appelez-nous	-
1	31-30256-1		Pm Instruction Install		Appelez-nous	-
101	WC02X10005		Bracket Switch		Appelez-nous	-
102	WC21X10004		Direction Switch		Appelez-nous	-
103	WC21X10005		On-off Switch		Appelez-nous	-
104	WC01X10008		Screw		Appelez-nous	-
105	WC01X10009		Nut Ring		Appelez-nous	-
106	WC25X10003		Back Panel		Appelez-nous	-
107	WC17X10002		Panel Wire		Appelez-nous	-
108	WC09X10001		Frame Spring		Appelez-nous	-
109	WC01X10010		Nut		Appelez-nous	-
110	WC17X10012		Frame Roller Asm		Appelez-nous	-
111	WC17X10003		Frame Slide Rh		Appelez-nous	-
112	WC17X10004		Frame Slide Lh		Appelez-nous	-
113	WC17X10010		Toe Kick Bb		Appelez-nous	-
113	WC17X10006		Toe Kick Ss		Appelez-nous	-
114	WC17X10008		Adjustable Panel Bb		Appelez-nous	-
114	WC17X10011		Adjustable Panel Ss		Appelez-nous	-
115	WC01X10011		Levelling Leg		Appelez-nous	-
116	WC25X10004		Bottom Pan		Appelez-nous	-
117	WC02X10006		Mobility Wheel Asm		Appelez-nous	-
118	WC02X10012		Shield Slide Track		Appelez-nous	-
119	WC17X10021		Motor Cover		Appelez-nous	-
120	WC17X10022		Rear Cover Motor		Appelez-nous	-
121	WC01X10022		Snap Bushing		Appelez-nous	-
122	WC02X10013		Snap Bushing		Appelez-nous	-
123	WC01X10023		Strain Relief Bushing		Appelez-nous	-
124	WC12X10005		Power Control Wire		Appelez-nous	-
125	WC12X10004		Power Cord		Appelez-nous	-
126	WC02X10014		Wire Clip		Appelez-nous	-
127	WC01X10021		Screw St4.2x10		Appelez-nous	-
128	WC01X10012		Screw 8"-32		Appelez-nous	-
302	WC01X10013		Screw St4.2x8_bb		Appelez-nous	-
306	WC21X10006		Door Tilt Switch		Appelez-nous	-
