SELECT A DIAGRAM
1 - Cabinet & Control Parts
2 - Frame Parts
3 - Container Parts
4 - Motor & Drive Parts

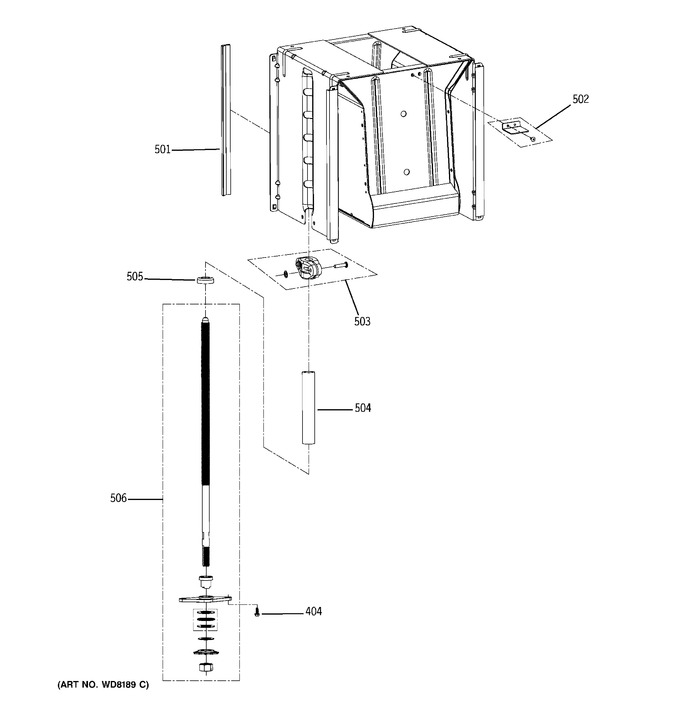

5 - Powerscrew & Ram Parts
6 - Accessory Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 404 | WC01X10014 | Screw 1/4"-20 |
|
- | |||||
| 501 | WC28X10003 | Ram Slide |
|
- | |||||
| 502 | WC02X10020 | Bracket Top Limit Switch |
|
- | |||||
| 503 | WC02X10021 | Nut Power Asm |
|
- | |||||
| 504 | WC02X10010 | Stopper |
|
- | |||||
| 505 | WC02X10011 | Stopper Cap |
|
- | |||||
| 506 | WC22X10004 | Power Screw Asm |
|
- |
