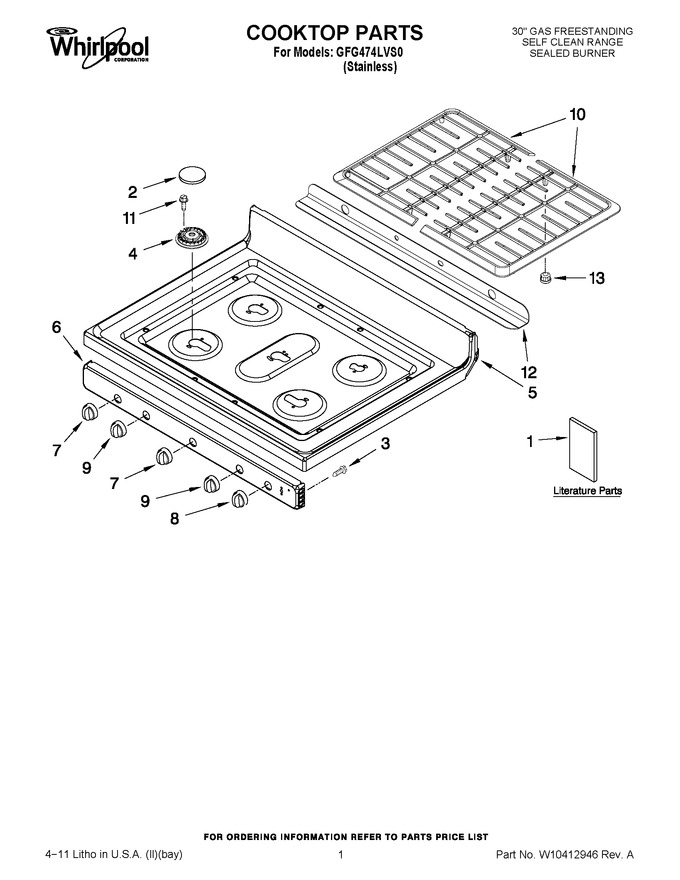

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Drawer & Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10198620 | Tech Sheet (english) |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10196161 | Installation Instructions |
|
- | |||||
| 1 | W10364877 | Use & Care Guide |
|
- | |||||
| 1 | 9757142 | Anti-tip Template (english/spanish) |
|
- | |||||
| 1 | 9757143 | Anti-tip Template (english/french) |
|
- | |||||
| 2 | WPW10183374 | Kit, Burner Cap (black) (Replaces: W10183374) |
|
$ 200.18 | |||||
| 3 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 4 | WPW10406243 | Burner (rr (6k)) (Replaces: 8286181) |
|
Immediately | $ 39.08 | ||||
| 4 | WPW10406283 | Burner (lr & Center (9k)) (Replaces: W10194076) |
|
$ 78.02 | |||||
| 4 | WPW10406878 | Burner (lf & Rf (17k)) (Replaces: 8286183) |
|
$ 107.48 | |||||
| 5 | W10153559 | Cooktop (black) |
|
- | |||||
| 5 | W10189809 | Panel, Manifold (black) |
|
$ 29.34 | |||||
| 5 | W10184156 | Panel, Manifold (stainless) |
|
- | |||||
| 7 | WPW10160649 | Knob, Control (black) (Replaces: W10160649) |
|
$ 24.22 | |||||
| 8 | WPW10134134 | Knob, Accusimmer (black) (Replaces: W10134134) |
|
$ 25.00 | |||||
| 9 | WPW10134131 | Knob, Powerburner (black) (Replaces: W10134131) |
|
$ 24.61 | |||||
| 10 | W10170256 | Kit, Burner Grate (black) |
|
$ 131.47 | |||||
| 11 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 8.56 | ||||
| 12 | W10178038 | Deflector, Flue |
|
- | |||||
| 13 | 8186321 | Bumper, Grate (Replaces: 9760219) |
|
Immediately | $ 10.60 | ||||
| NI | W10345828 | Griddle |
|
- |
