SELECT A DIAGRAM

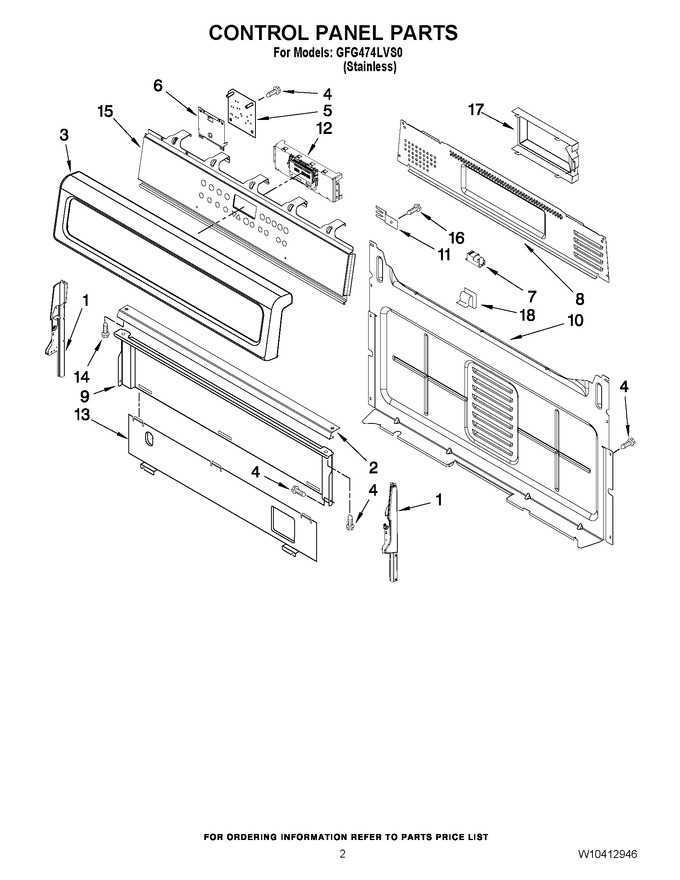

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Drawer & Broiler Parts


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black Lh)   (Replaces: W10184437)				$ 153.83
1	W11219665		Endcap (black Rh)   (Replaces: W10184438)				$ 45.17
2	W10211996		Bracket, Console		Appelez-nous	-
3	W10201510		Panel, Control (stainless)				$ 116.83
4	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 14.72
5	WPW10331686		Module, Spark   (Replaces: W10331686)			Immediately	$ 393.86
6	W10167573		Brkt-mntg, Dsi		Appelez-nous	-
7	8522425		Module, Spark (filtered)				$ 122.75
8	W10198745		Cover, Upper				$ 128.90
9	W10192841		Shield, Heat				$ 106.69
10	W10184251		Cover, Lower		Appelez-nous	-
11	8523412		Bracket, Support				$ 167.90
12	W10157246		Control, Range				$ 346.69
13	8053505		Heat Shield				$ 165.89
14	WP3400832		Screw (black)   (Replaces: 3196168)			Immediately	$ 8.18
15	W10224753		Active Overlay Assembly (black)				$ 263.57
16	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.95
17	W10158780		Cover, Fan				$ 118.48
18	WP8273564		Clip   (Replaces: 8273564)				$ 12.66
