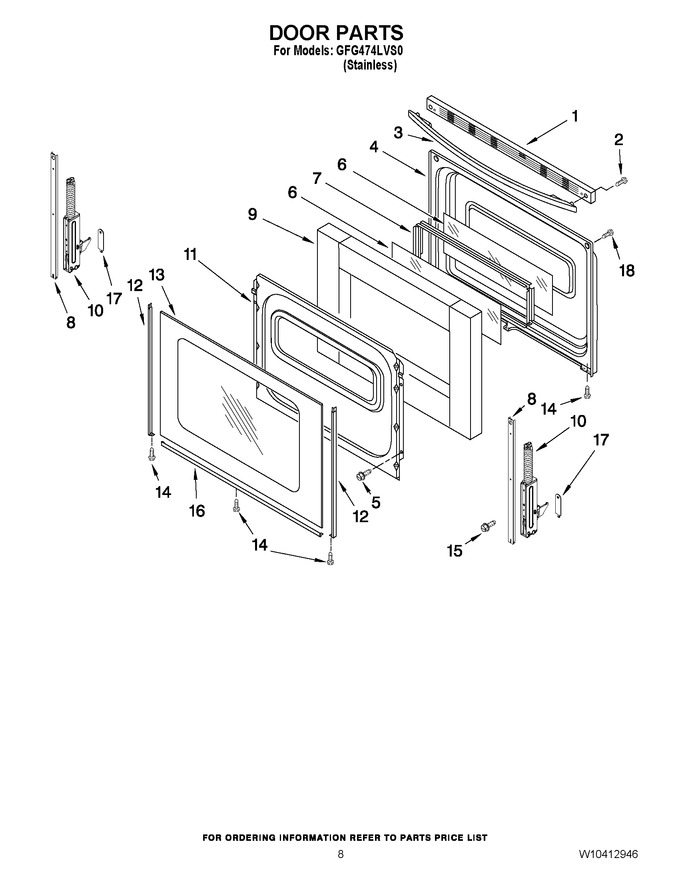

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Drawer & Broiler Parts


06 - Door Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10310922		Vent, Oven Top (black)   (Replaces: W10310922)			Immediately	$ 175.37
2	W11396735		Screw   (Replaces: W10163951)				$ 14.75
3	WPW10144883		Handle, Door (stainless)   (Replaces: W10144883)				$ 252.66
4	WP9761344		Liner, Door   (Replaces: 9761344)			Immediately	$ 372.89
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 8.74
6	WP8053948		Glass, Inner   (Replaces: 9758162)				$ 178.28
7	WPW10316950		Frame, Glass   (Replaces: W10316950)			Immediately	$ 90.09
8	W11502236		Strap, Door   (Replaces: W10113759)			Immediately	$ 27.68
9	WPW10278991		Insulation, Door   (Replaces: W10278991)			Immediately	$ 101.37
10	WPW10299227		Hinge, Door (passive)   (Replaces: W10299227)			Immediately	$ 70.74
10	WPW10299224		Hinge, Door (active)   (Replaces: W10299224)			Immediately	$ 73.47
11	W11539580		Retainer, Insul.   (Replaces: 9761357)				$ 233.31
12	W10761018		Trim, Door Side (black Lh)   (Replaces: 8523171)			Immediately	$ 53.77
12	W10761014		Trim, Door Side (black Rh)   (Replaces: 8523165)			Immediately	$ 72.96
13	WPW10118455		Glass, Outer Door (black)   (Replaces: W10118455)			Immediately	$ 332.70
13	W10144884		Glass, Outer Door (panel, Ss Only)		Appelez-nous	-
14	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 7.55
15	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 8.26
16	9761517		Clip, Door Mntg				$ 48.11
17	WPW10200660		Screw, 10-16 X 3/4   (Replaces: W10200660)			Immediately	$ 8.24

    View Diagram in Separate Window       Print Part List
