01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts

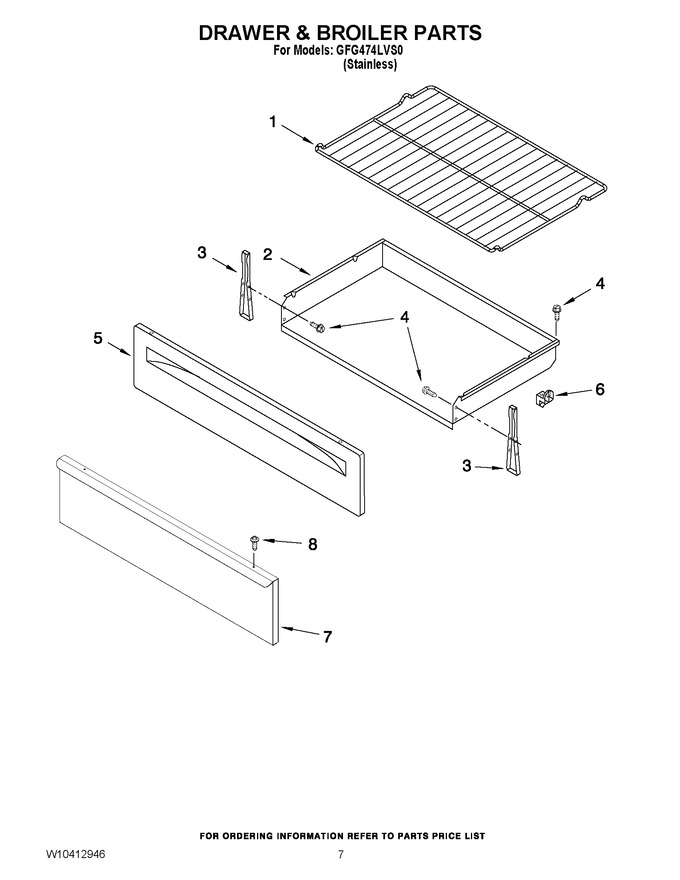

05 - Drawer & Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11520287 | Rack, Oven (Replaces: W10268578) |
|
Immediately | $ 46.84 | ||||
| 2 | W10296838 | Drawer, Storage |
|
- | |||||
| 3 | W11759228 | Bracket, Drawer (ss Only) (Replaces: 3196817) |
|
$ 28.27 | |||||
| 4 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 7.55 | ||||
| 5 | N/P | Panel, Drawer Frnt |
|
- | |||||
| 6 | WP8053334 | Glide, Drawer (Replaces: 8053334) |
|
Immediately | $ 7.84 | ||||
| 7 | W10244872 | Panel (ss Model) |
|
$ 106.68 | |||||
| 8 | W11233072 | Screw, Ss Only (Replaces: 7101P634-60) |
|
Immediately | $ 14.72 |
