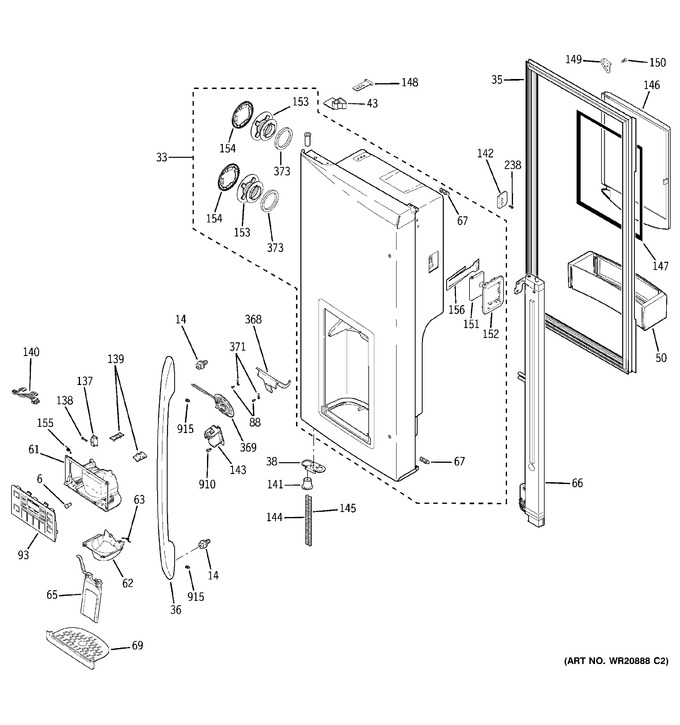

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | WR02X13502 | Rivet Clinch |
|
- | |||||
| 14 | WR01A00257 | Fastener Handle Ss (Replaces: WR01X10680) |
|
$ 15.78 | |||||
| 33 | WR78X12737 | Door Foam Asm Fr Bw Lh |
|
- | |||||
| 35 | WR01L02134 | Gasket French With Flap (Replaces: WR14X10305) |
|
Immediately | $ 98.12 | ||||
| 36 | WR12X10976 | Handle Asm Ff Fin |
|
- | |||||
| 38 | WR02X13483 | Stop Door Bm |
|
- | |||||
| 43 | WR02X13484 | Cam Ff Closure Lh |
|
- | |||||
| 50 | WR17X12979 | Module Shelf Asm Ff |
|
- | |||||
| 61 | WR01F01053 | Housing Shield Disp (Replaces: WR17X12500) |
|
$ 22.89 | |||||
| 62 | WR01L02041 | Funnel Ice Dispenser (Replaces: WR17X12983) |
|
$ 18.17 | |||||
| 63 | WR02X13485 | Spring Torsion |
|
- | |||||
| 65 | WR17X12982 | Paddle Asm |
|
- | |||||
| 66 | WR17X12980 | Articulation Mullion Asm |
|
- | |||||
| 67 | WR02X13427 | Bumper French Door |
|
- | |||||
| 69 | WR01L02248 | Grill Recess (Replaces: WR17X12981) |
|
$ 12.50 | |||||
| 88 | WR01X10634 | Scr 8-18 Ab 13/4 S Hxw |
|
- | |||||
| 93 | WR01F01494 | Interface Dispenser Asm (Replaces: WR55X11087) |
|
$ 250.53 | |||||
| 137 | WR01F03637 | Switch (Replaces: WR23X10224) |
|
Immediately | $ 17.47 | ||||
| 138 | WR02X12257 | Scr 4-10 Pl Pnp 3/4 Ss |
|
- | |||||
| 139 | WR01F00145 | Board Asm Disp Lighting (Replaces: WR55X10899) |
|
$ 15.88 | |||||
| 140 | WR23X10665 | Harness Recess Dispensor |
|
- | |||||
| 141 | WR02X13486 | Thimble Door Ff |
|
- | |||||
| 142 | WR02X13487 | Clip Mullion Hinge |
|
- | |||||
| 143 | WR01F01784 | Solenoid Asm (Replaces: WR62X10055) |
|
$ 88.99 | |||||
| 144 | WR02X13488 | Spring Water Conduit |
|
- | |||||
| 145 | WR02X13489 | Spring Water Conduit |
|
- | |||||
| 146 | WR17X12984 | Door Ice Box Asm |
|
- | |||||
| 147 | WR14X10355 | Gasket Icebox Door |
|
- | |||||
| 148 | WR13X10926 | Door Icebox Hinge Top |
|
- | |||||
| 149 | WR13X10927 | Door Icebox Hinge Bottom |
|
- | |||||
| 150 | WR01X10977 | Scr 8-18 Hi-lo Flp 1/2 S |
|
- | |||||
| 151 | WR02X13490 | Latch Button |
|
- | |||||
| 152 | WR02X13491 | Latch Trim |
|
- | |||||
| 153 | WR14X10356 | Gasket Retainer |
|
- | |||||
| 154 | WR14X10357 | Port Gasket |
|
- | |||||
| 155 | WR02X13492 | Spring Duct Door |
|
- | |||||
| 238 | WR01X10482 | Scr 8-18a Fl Hd 5/8 Ss |
|
- | |||||
| 368 | WR01L00935 | Crank Door Recess (Replaces: WR17X10706) |
|
$ 12.71 | |||||
| 369 | WR17X13004 | Duct Door Heater Asm |
|
- | |||||
| 371 | WR2X8818 | Retainer Recess Door |
|
- | |||||
| 373 | WR02X13506 | Foam Tape |
|
- | |||||
| 910 | WR01A01034 | Scr 8-10 Pl Pnp 1/2 S (Replaces: WR01X10221) |
|
$ 4.20 | |||||
| 915 | WR01A01440 | Set Screw (Replaces: WR01X10450) |
|
$ 9.53 |
