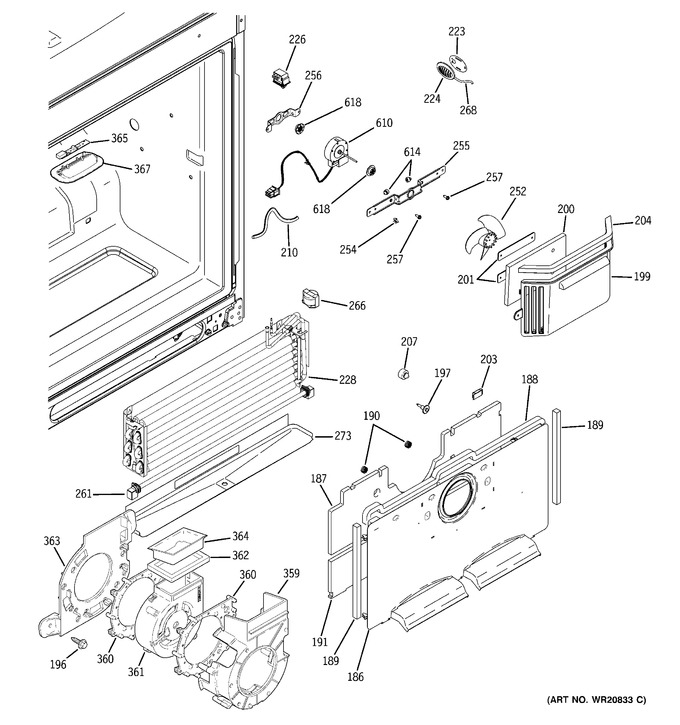

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 186 | WR17X12995 | Cover Evap |
|
- | |||||
| 187 | WR14X10333 | Foam Pad Cover Evap |
|
- | |||||
| 188 | WR14X10221 | Foam Strip Se Adh |
|
- | |||||
| 189 | WR14X10222 | Foam Strip Se Adh |
|
- | |||||
| 190 | WR17X12252 | Grommet Evap Fan |
|
- | |||||
| 191 | WR17X12253 | Insulation Cover Evap |
|
- | |||||
| 196 | WR01A00683 | Scr 8-18 Ab Ihxw 9/16 S (Replaces: WR01X10588) |
|
$ 3.97 | |||||
| 197 | WR01X10685 | Scr 8-18 Ab Ihw |
|
- | |||||
| 199 | WR17X12254 | Cover Evap Fan |
|
- | |||||
| 200 | WR14X10225 | Foam Pad Cover Evap |
|
- | |||||
| 201 | WR14X10226 | Holder Foam Pad |
|
- | |||||
| 203 | WR23X10535 | Harness Ground |
|
- | |||||
| 204 | WR14X10223 | Foam Strip Se Adh |
|
- | |||||
| 207 | WR02X13350 | Bumper Lid |
|
- | |||||
| 210 | WR14X10267 | Harness Insulation |
|
- | |||||
| 223 | WR01L04393 | Shunt Sensor (Replaces: WR02X10668) |
|
Immediately | $ 15.88 | ||||
| 224 | WR01L04066 | Grille Sensor (Replaces: WR02X10647) |
|
$ 3.97 | |||||
| 226 | WG03F09086 | Switchlight (Replaces: WR23X10143) |
|
Immediately | $ 11.12 | ||||
| 228 | WR01L02794 | Low Side Asm (Replaces: WR85X10087) |
|
$ 176.78 | |||||
| 252 | WR60X10208 | Blade Evap Fan Asm |
|
- | |||||
| 254 | WR02X11607 | Wire Tie |
|
- | |||||
| 255 | WR17X12507 | Bracket Fan Evap Front |
|
- | |||||
| 256 | WR02X10764 | Bracket Evap Fan Btm |
|
- | |||||
| 257 | WR01X10620 | Scr 10-32 Ca Hxws 9/16 S |
|
- | |||||
| 261 | WR01F00995 | Heater Def Asm (Replaces: WR51X10094) |
|
$ 84.76 | |||||
| 266 | WR01F02868 | Thermostat Def (Replaces: WR50X10069) |
|
Immediately | $ 68.13 | ||||
| 268 | WR55X10711 | Sensor Temperature |
|
- | |||||
| 273 | WR17X12303 | Tube Drain Trough |
|
- | |||||
| 359 | WR17X12998 | Bracket Blower Rear |
|
- | |||||
| 360 | WR01F00628 | Damper Blower (Replaces: WR17X12999) |
|
$ 16.38 | |||||
| 361 | WR01F00138 | Blower Fan Duct (Replaces: WR60X10330) |
|
Immediately | $ 209.42 | ||||
| 362 | WR14X10359 | Gasket Fan Bracket |
|
- | |||||
| 363 | WR17X13001 | Bracket Blower Front |
|
- | |||||
| 364 | WR14X10358 | Boot Fz Duct |
|
- | |||||
| 365 | WR01F00268 | Board Led Light Asm (Replaces: WR55X11088) |
|
Immediately | $ 29.08 | ||||
| 367 | WR17X13003 | Cover Led Asm |
|
- | |||||
| 610 | WR01F05069 | Motor Dc Evap Fan Asm (Replaces: WR60X10277) |
|
Immediately | $ 94.54 | ||||
| 614 | WR01A00163 | Bumper Lid (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 618 | WR01A00579 | Grommet Evap Fan (Replaces: WR02X11331) |
|
$ 3.97 |
