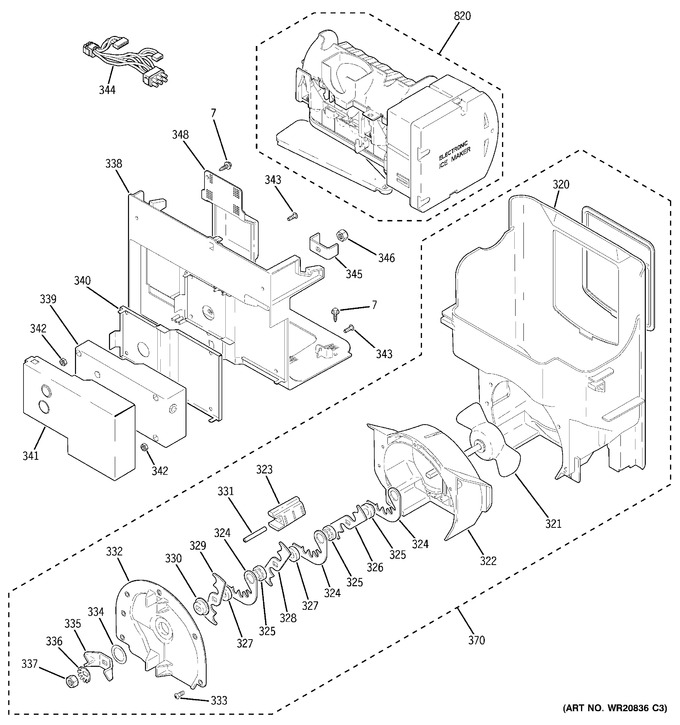

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
7	WR01X10612		Scr 8-18 Ab Hxw 1/2 S		Appelez-nous	-
320	WR30X10156		Bucket Ice		Appelez-nous	-
321	WR17X12985		Agitator Asm		Appelez-nous	-
322	WR17X12986		Housing Crusher		Appelez-nous	-
323	WR02X13493		Holder Stationary Blade		Appelez-nous	-
324	WR17X12987		Blade Stationary		Appelez-nous	-
325	WR2X4138		Spacer Crusher Stationar		Appelez-nous	-
326	WR17X12988		Moving Blade Crusher		Appelez-nous	-
327	WR2X4139		Spacer Crusher Middle		Appelez-nous	-
328	WR17X12989		Moving Blade Crusher		Appelez-nous	-
329	WR17X12990		Moving Blade Crusher		Appelez-nous	-
330	WR01X10978		Spacer Acetal		Appelez-nous	-
331	WR2X4141		Pin Spiral		Appelez-nous	-
332	WR17X12991		Cover Crusher		Appelez-nous	-
333	WR01X10979		Scr 10-16 Pl Pnp 1/2 Ss		Appelez-nous	-
334	WR01X10980		Washer Coupling		Appelez-nous	-
335	WR01X10981		Coupling Bucket		Appelez-nous	-
336	WR01X10982		Tab Washer		Appelez-nous	-
337	WR01X10983		Nut 3/8-24 Hex Ss		Appelez-nous	-
338	WR17X12992		Auger Motor Cover		Appelez-nous	-
339	WR01F01597		Motor Auger Dc   (Replaces: WR60X10331)				$ 104.84
340	WR02X13494		Front Cover		Appelez-nous	-
341	WR02X13495		Rear Cover		Appelez-nous	-
342	WR01X10822		Nut Hex Ss		Appelez-nous	-
343	WR01X10821		Scr 8-32 M Hx 1/2 S		Appelez-nous	-
344	WR23X10708		Harness Motor And Relay		Appelez-nous	-
345	WR02X13496		Fork		Appelez-nous	-
346	WR01X10984		Lock Nut 5/16-18 Hex Ss		Appelez-nous	-
348	WR17X12996		Cover Access		Appelez-nous	-
370	WR01L02545		Ice Bucket Asm   (Replaces: WR30X10157)				$ 222.81
820	WG03F07366		Icemaker - Door Mounted   (Replaces: WR30X10150)			Immediately	$ 244.43
