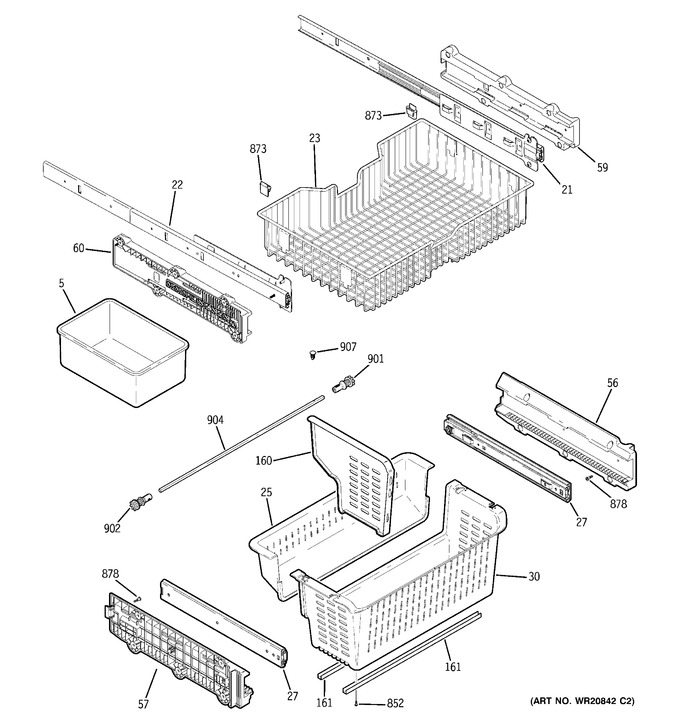

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
5	WR30X10158		Bucket Ice-25		Appelez-nous	-
21	WR17X12918		Slide Upper Asm Rh 25		Appelez-nous	-
22	WR17X12919		Slide Upper Asm Lh 25		Appelez-nous	-
23	WR21X10240		Basket Upper Fz 25		Appelez-nous	-
25	WR21X10230		Basket Lower Back		Appelez-nous	-
27	WR01A01823		Slide Lower Asm 25   (Replaces: WR17X12863)				$ 224.16
30	WR21X10231		Basket Lower Front		Appelez-nous	-
56	WR02X13398		Rail Holder Fz Lwr Rh 25		Appelez-nous	-
57	WR02X13399		Rail Holder Fz Lwr Lh 25		Appelez-nous	-
59	WR02X12707		Rail Holder Fz Up Rh 25		Appelez-nous	-
60	WR02X12708		Rail Holder Fz Up Lh 25		Appelez-nous	-
160	WR02X13402		Divider Basket Bottom 25		Appelez-nous	-
161	WR02X13383		Stiffner		Appelez-nous	-
852	WR01A00686		Scr 8-18 Ab Pnp 5/8 S   (Replaces: WR01X10858)				$ 3.97
873	WR02X12733		Sleeve Bracket		Appelez-nous	-
878	WR01A00634		Scr 10-14 Pl Flt20 3/4 S   (Replaces: WR01X10939)				$ 3.97
901	WR01F00845		Gear Pinion Rh   (Replaces: WR02X13387)			Immediately	$ 10.12
902	WR01F00844		Gear Pinion Lh   (Replaces: WR02X13384)				$ 9.53
904	WR02X13388		Cross Bar Pinion		Appelez-nous	-
907	WR01A00269		Fastner Push   (Replaces: WR01X10947)				$ 4.20
