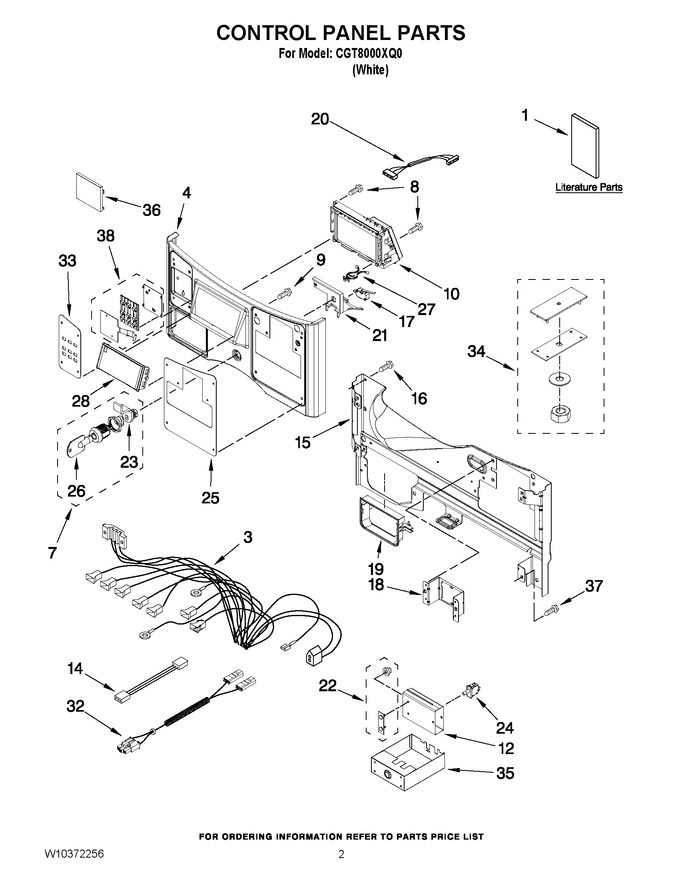

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10335467 | Installation Instruction |
|
- | |||||
| 1 | W10394865 | Tech Sheet |
|
- | |||||
| 1 | W10372256 | Parts List |
|
- | |||||
| 3 | WPW10242899 | Harness, Main (Replaces: W10242899) |
|
$ 149.86 | |||||
| 4 | W11181684 | Panel Assembly, Console (Replaces: W10198202) |
|
- | |||||
| 7 | W11231586 | Service & Programming Lock (Replaces: W10198223) |
|
- | |||||
| 8 | WPW10273971 | Screw, 6-19 X 1/2 (Replaces: W10192860) |
|
Immediately | $ 7.19 | ||||
| 9 | 3400408 | Screw, 4-40 X 5/8 |
|
- | |||||
| 10 | W10198221 | Techbox Assembly |
|
$ 257.96 | |||||
| 12 | W11204020 | Vault-body Assembly (Replaces: W10133258) |
|
$ 401.64 | |||||
| 14 | W10342214 | Cable Set, Ui To Ccu Communication |
|
$ 69.68 | |||||
| 15 | W10198321 | Console Bracket |
|
- | |||||
| 16 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.79 | ||||
| 17 | WPW10447152 | Service Access, Switch (Replaces: W10133280) |
|
$ 41.20 | |||||
| 18 | W10198322 | Bracket Pd |
|
- | |||||
| 19 | W10198345 | Collar, Dispenser |
|
- | |||||
| 20 | W11700545 | Harness, Wire Dryer Ccu To Uic (Replaces: W10242897) |
|
$ 31.12 | |||||
| 21 | W10198375 | Support-console |
|
- | |||||
| 22 | W10159907 | Mounting Strap, Weld Assembly |
|
- | |||||
| 23 | W11165684 | Cam-lock (Replaces: W10133266) |
|
$ 9.11 | |||||
| 24 | WPW10131838 | Switch, Vault & Service Door (Replaces: W10131838) |
|
$ 23.91 | |||||
| 25 | W10198335 | Fascia |
|
- | |||||
| 26 | WPW10114740 | Key-access Door (Replaces: W10114740) |
|
$ 130.94 | |||||
| 27 | 8019P013- | Clip, Nylon |
|
- | |||||
| 28 | W10198390 | Window Display |
|
$ 82.34 | |||||
| 32 | W10300896 | Wire Harness, Vault Switch |
|
- | |||||
| 33 | W10198331 | Fascia Buttons |
|
- | |||||
| 34 | W11416034 | Kit-coin Box, Security (to Be Serviced As A Kit) (Replaces: W10169579) |
|
$ 126.00 | |||||
| 35 | W11204019 | Coin Box (Replaces: W10133248) |
|
$ 156.05 | |||||
| 36 | W10198366 | Cover-pd |
|
- | |||||
| 37 | WPW10131119 | Screw, 8-18 X 1/2 (Replaces: W10386302) |
|
$ 6.95 | |||||
| 38 | WPW10198199 | Button Set, Assembly (Replaces: W10198199) |
|
$ 222.23 | |||||
| NI | W11519983 | Card Reader, Conversion Kit (Replaces: W10198451) |
|
$ 74.38 | |||||
| NI | WPW10198367 | Card Reader, Bezel (included With W10198451) (Replaces: W10198367) |
|
$ 23.36 |
