SELECT A DIAGRAM

01 - Control Panel Parts

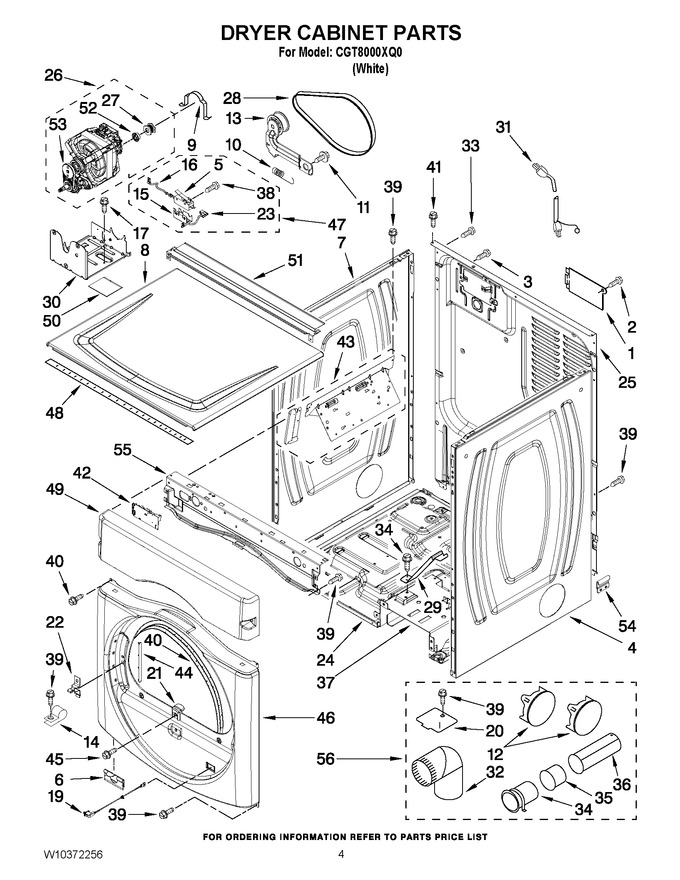

02 - Dryer Cabinet Parts


03 - Bulkhead And Blower Parts


04 - Dryer Door Parts


05 - Washer Door Parts


06 - Washer Cabinet Parts


07 - Dispenser Parts


08 - Tub And Basket Parts


09 - W10135231 Burner Assembly


10 - Pump And Motor Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10819767		Cover, Terminal Block   (Replaces: 8317340)		Appelez-nous	-
2	WP90767		Screw, 8-18 X 3/8   (Replaces: 3390814)			Immediately	$ 7.82
3	W10850756		Screw, Ground   (Replaces: 8533974)				$ 7.76
4	W10542714		Panel, Side (r.h.)   (Replaces: 8565048)				$ 333.89
5	WP8564010		Switch, Broken Belt   (Replaces: 8564010)				$ 99.15
6	W11295573		Clip, Toe Panel   (Replaces: 8519459)				$ 21.11
7	W10542714		Panel, Side (l.h.)   (Replaces: 8565054)				$ 333.89
8	WPW10336080		Top   (Replaces: 8563730)				$ 316.18
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.83
10	WPW10446781		Spring, Idler   (Replaces: 3387374)			Immediately	$ 24.57
11	WP3389420		Retainer, Idler   (Replaces: 3389420)				$ 8.02
12	W10470674		Plug-multivent   (Replaces: 697750)			Immediately	$ 76.65
13	WPW10344192		Idler Assembly   (Replaces: W10344192)			Immediately	$ 90.07
14	3978776		Bracket, Gas Pipe		Appelez-nous	-
15	8564011		Bracket-switch				$ 18.17
16	W10167613		Wire, Belt Switch		Appelez-nous	-
17	WP681414		Screw, 8-18 X 1/2   (Replaces: 343641)			Immediately	$ 7.85
19	W10128087		Assembly, Door Switch				$ 90.98
20	WPW10354249		Cover-plate   (Replaces: 8066115)				$ 8.96
21	8580015		Ramp, Door				$ 84.04
22	WP8565122		Strike, Door   (Replaces: 8565122)			Immediately	$ 8.65
23	8539892		Wire-motor To Belt Switch		Appelez-nous	-
24	W11116960		Base, Cabinet   (Replaces: W10198309)		Appelez-nous	-
25	8565059		Panel, Rear				$ 244.90
26	W11234001		Motor Assembly 60 Hz.   (Replaces: W10139766)			Immediately	$ 413.21
27	WP8066184		Pulley   (Replaces: 3394341)			Immediately	$ 51.02
28	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 44.00
29	W10198376		Bracket, Burner		Appelez-nous	-
30	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 125.84
31	W11222083		Cord, Power   (Replaces: W10440461)				$ 120.59
32	WPW10416072		4`` - 90° Elbow   (Replaces: 49026)				$ 26.82
33	WP693995		Screw, 8-18 X 3/8   (Replaces: 693995)			Immediately	$ 7.19
34	WP8563747		Exhaust Pipe & Bracket   (Replaces: 8563747)				$ 91.38
35	WPW10331278		Exhaust Pipe (short)   (Replaces: 8563750)				$ 78.95
36	WP8563749		Exhaust Pipe (long)   (Replaces: 8563749)				$ 88.80
37	W10133261		Vault Switch, Bracket		Appelez-nous	-
38	777849		Screw, 6-20 X 1.00   (Replaces: W10002600)				$ 7.01
39	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.79
40	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 31.42
41	WP308685		Screw, 10-16 X 1/2   (Replaces: 3393008)			Immediately	$ 7.87
42	WPW10376685		Control Board   (Replaces: W10376685)				$ 488.41
43	WP8563727		Control Bracket   (Replaces: 8563727)				$ 171.13
44	8565043		Plug, Strip Front Panel				$ 92.66
45	WP308685		Screw, 10-16 X 1/2   (Replaces: 3357011)			Immediately	$ 7.87
46	WPW10117421		Front Panel (includes Llus. 40)   (Replaces: W10117421)				$ 283.08
47	W11247665		Switch, Assembly   (Replaces: W10155571)				$ 26.40
48	WP8318396A		Foam-seal (iec)   (Replaces: 8318396)				$ 37.82
49	W11674367		Enclosure-ccu Asm.   (Replaces: W10198363)				$ 194.13
50	W11113654		Sound Pad, Motor   (Replaces: W10212660)				$ 22.18
51	W10198224		Bracket, Water Channel		Appelez-nous	-
52	WP3393657		Belt Restrainer   (Replaces: 3393657)			Immediately	$ 132.46
53	WP3405160		Belt, Poly V   (Replaces: 3405160)			Immediately	$ 35.23
54	W10198461		Bracket-stack		Appelez-nous	-
55	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 180.73
NI	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting) (white)   (Replaces: 279818)			Immediately	$ 76.65

    View Diagram in Separate Window       Print Part List
