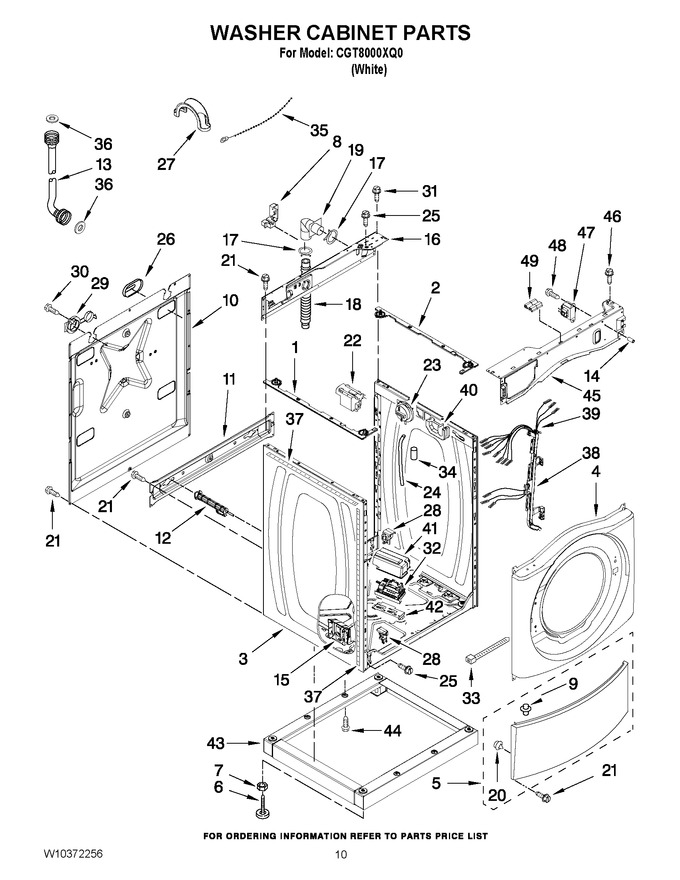

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11175840 | Rail-spacer, Left (Replaces: W10405229) |
|
- | |||||
| 2 | W10405223 | Rail-spacer, Right |
|
- | |||||
| 3 | W10198145 | Cabinet (Replaces: W10225458) |
|
- | |||||
| 4 | WPW10306505 | Panel, Front (Replaces: W10306505) |
|
$ 356.83 | |||||
| 5 | WP8540664 | Toe Panel (Replaces: 8540813) |
|
$ 359.15 | |||||
| 6 | W10862938 | Foot, Leveling (Replaces: W10245373) |
|
Immediately | $ 12.59 | ||||
| 7 | WP3359452 | Nut, Lock (Replaces: 3359452) |
|
Immediately | $ 7.19 | ||||
| 8 | 8182635 | Strain Relief, Power Cord (Replaces: W10110676) |
|
$ 16.72 | |||||
| 9 | 8518891 | Rivet |
|
$ 13.40 | |||||
| 10 | W10258342 | Panel, Rear |
|
- | |||||
| 11 | W10189659 | Brace, Transport |
|
$ 43.19 | |||||
| 12 | W10763471 | Bolt, Shipping (Replaces: W10251449) |
|
$ 40.12 | |||||
| 13 | WP89503 | Hose, Water Inlet (cold Water) (Replaces: W10194208) |
|
Immediately | $ 24.09 | ||||
| 13 | WP89503 | Hose, Water Inlet (hot Water) (Replaces: 8571378) |
|
Immediately | $ 24.09 | ||||
| 14 | W10018050 | Caplug |
|
- | |||||
| 15 | WPW10384849 | Motor Control Unit (Replaces: W10384849) |
|
Immediately | $ 367.93 | ||||
| 16 | W10244560 | Brace, Rear |
|
$ 89.62 | |||||
| 17 | WP356138 | Clamp, Hose (Replaces: 356138) |
|
Immediately | $ 8.52 | ||||
| 18 | WPW10106460 | Hose, Drain-outer (Replaces: W10106460) |
|
$ 27.31 | |||||
| 19 | W11757170 | Connector, Hose Outlet (Replaces: W10003260) |
|
Immediately | $ 6.39 | ||||
| 20 | 238614 | Bumper |
|
$ 80.76 | |||||
| 21 | WP489442 | Screw, 8-18 X 5/8 (Replaces: W10015090) |
|
Immediately | $ 10.94 | ||||
| 22 | WPW10367632 | Filter, Interference (Replaces: W10339736) |
|
$ 122.22 | |||||
| 23 | W10292407 | Switch, Pressure |
|
$ 38.65 | |||||
| 24 | W11252474 | Hose, Pressure Switch (Replaces: 8540294) |
|
Immediately | $ 35.23 | ||||
| 25 | 8540479 | Screw, Grounding |
|
$ 8.78 | |||||
| 26 | WP8540268 | Cover, Transport (Replaces: 8540268) |
|
$ 6.95 | |||||
| 27 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 7.97 | |||||
| 28 | WPW10085220 | Microswitch (Replaces: W10085220) |
|
$ 33.25 | |||||
| 29 | W11116978 | Sleeve, Cord Support (Replaces: 8540728) |
|
$ 22.80 | |||||
| 30 | 8182201 | Screw, 3 X 8 Mm (Replaces: 8540727) |
|
$ 13.41 | |||||
| 31 | 8540329 | Screw |
|
- | |||||
| 32 | W11181678 | Microcomputer, Machine Control (Replaces: W10382867) |
|
Immediately | $ 601.22 | ||||
| 33 | WP2205813 | Cable Tie (Replaces: 3429563) |
|
$ 7.72 | |||||
| 34 | W11751592 | Sleeve, Pressure Switch Hose (Replaces: 2161302) |
|
Immediately | $ 20.30 | ||||
| 35 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 7.90 | |||||
| 36 | WP16123 | Washer, Water Inlet Hose 1-1/16 X 5/8 (Replaces: 3976300) |
|
$ 7.70 | |||||
| 37 | WP8318396A | Seal, Foam-iec (Replaces: 8318396) |
|
$ 37.82 | |||||
| 38 | W10200785 | Harness Channel, Side Front (Replaces: W10168546) |
|
$ 9.09 | |||||
| 39 | W10330830 | Harness, Main Wiring Includes Item 38 |
|
$ 289.01 | |||||
| 40 | 8540643 | Bracket, Spring |
|
$ 12.25 | |||||
| 41 | W10405233 | Cover, Ccu |
|
$ 67.59 | |||||
| 42 | W10198280 | Bracket, Ccu |
|
- | |||||
| 43 | W10103350A | Pedestal, Commercial (Replaces: W10103350) |
|
- | |||||
| 44 | WPW10346892 | Screw, 12-14 X 5/8 (Replaces: 3400111) |
|
Immediately | $ 7.19 | ||||
| 45 | W10294428 | Bracket, Console |
|
- | |||||
| 46 | WP489442 | Screw, 8-18 X 5/8 (Replaces: W10015090) |
|
Immediately | $ 10.94 | ||||
| 47 | W11403858 | Transformer, 120 To 22.5 Vac (Replaces: W10198388) |
|
$ 199.27 | |||||
| 48 | 8540329 | Screw, 8-18 X 7/16 |
|
- | |||||
| 49 | W10198373 | Retainer-base |
|
- | |||||
| NI | W10342214 | Ccu To Mcu-serial Communication (3 Pole) |
|
$ 69.68 | |||||
| NI | W10330829 | Ccu To Hot Fill Valve (2 Pole) (Replaces: W10342201) |
|
- | |||||
| NI | W10342210 | Ccu To Mcu-power (2 Pole) |
|
$ 84.11 | |||||
| NI | W10342200 | Ccu To Cold Fill Valve (4 Pole) |
|
- | |||||
| NI | N/P | The Following Cable Sets: (not Illustrated) |
|
- | |||||
| NI | W10342208 | Door Lock - Power |
|
- |
