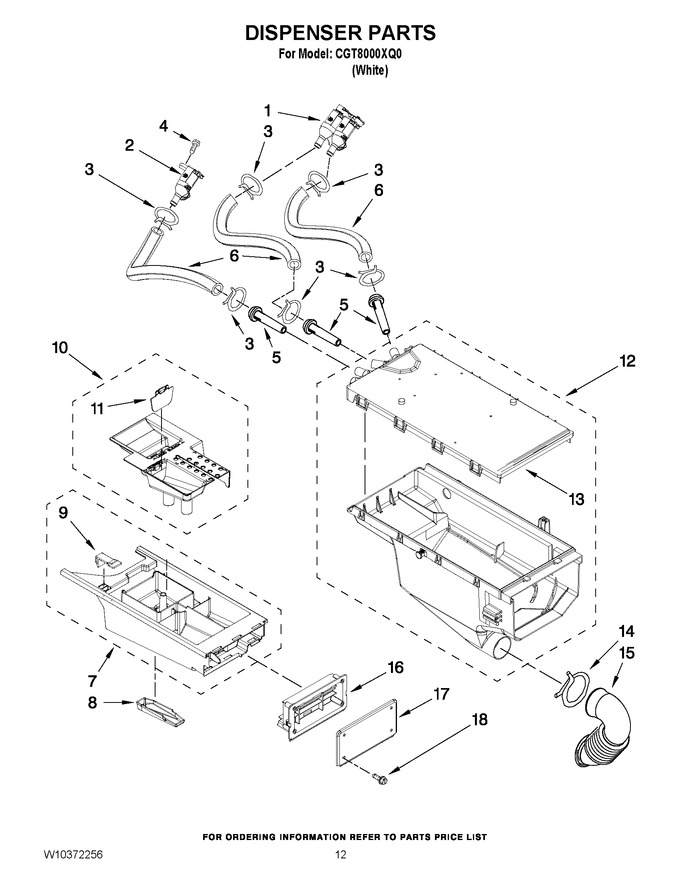

07 - Dispenser Parts


08 - Tub And Basket Parts


09 - W10135231 Burner Assembly


10 - Pump And Motor Parts


11 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10212596		Valve, Water Inlet (double)   (Replaces: W10212596)				$ 92.96
2	WPW10212598		Valve, Water Inlet (single)   (Replaces: W10212598)			Immediately	$ 73.18
3	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 8.40
4	WPW10137456		Screw   (Replaces: W10137456)				$ 7.81
5	WP8183181		Nozzle, Inlet   (Replaces: 8183181)				$ 90.30
6	W10803052		Hose, Valve To Dispenser   (Replaces: W10212611)				$ 13.71
7	W10395619		Drawer, Detergent   (Replaces: W10376660)			Immediately	$ 102.33
8	WP8540399		Cover, Detergent Drawer   (Replaces: 8540399)				$ 74.85
9	WPW10198458		Tab, Drawer Release   (Replaces: W10198458)				$ 7.40
10	W10433390		Siphon, Bleach/softener   (Replaces: W10407371)			Immediately	$ 79.47
11	WPW10298953		Door, Living Hinge   (Replaces: W10298953)				$ 6.43
12	W10364594		Dispenser, Outer Housing   (Replaces: W10212603)				$ 301.32
13	WPW10212604		Plate, Distribution   (Replaces: W10212604)			Immediately	$ 95.45
14	W11622908		Clamp, Hose   (Replaces: 8281276)				$ 22.22
15	W11366227		Hose, Dispenser To Tub   (Replaces: 8540063)			Immediately	$ 23.35
16	WPW10405607		Handle, Drawer   (Replaces: W10405607)				$ 94.73
17	W10198368		Cover, Handle		Appelez-nous	-
18	WPW10137456		Screw, 8-18 X 1/2   (Replaces: W10137456)				$ 7.81
