View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

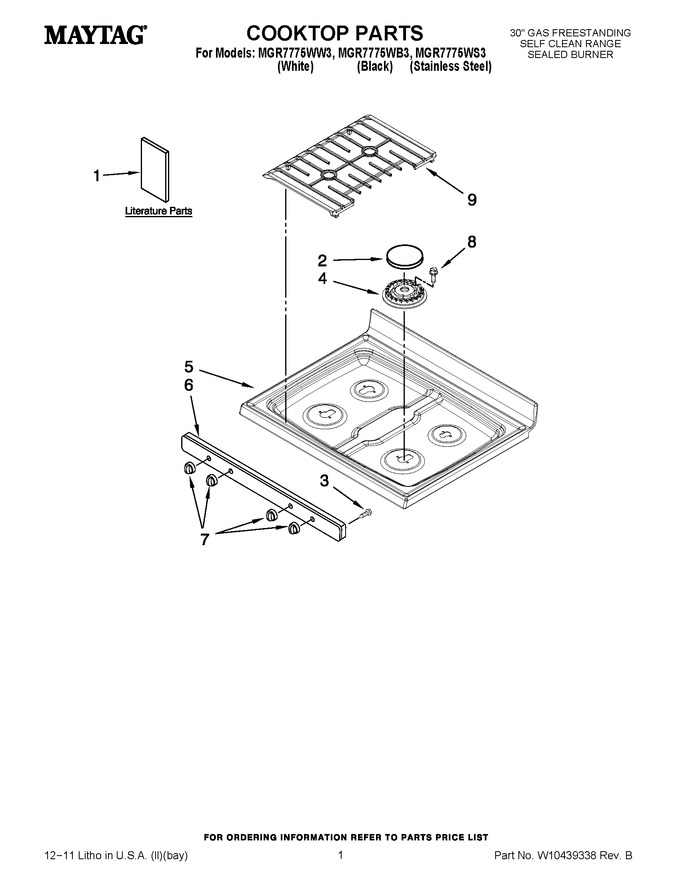

01 - Cooktop Parts
02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Drawer & Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10357516 | Tech Sheet |
|
- | |||||
| 1 | W10269527 | Use & Care Guide |
|
- | |||||
| 1 | W10413012 | Installation Instructions |
|
- | |||||
| 1 | 9757142 | Anti-tip Template (english/spanish) |
|
- | |||||
| 1 | 9757143 | Anti-tip Template (english/french) |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips |
|
- | |||||
| 2 | W10183373 | Set, Burner Cap (wetstone) |
|
- | |||||
| 2 | WPW10183375 | Set, Burner Cap (black) (Replaces: W10183375) |
|
$ 147.56 | |||||
| 3 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.95 | ||||
| 4 | WPW10406283 | Burner (lr - Rf(9k)) (Replaces: W10194076) |
|
$ 74.30 | |||||
| 4 | WPW10406878 | Burner (lf & Rf (12k)) (Replaces: 8286183) |
|
$ 102.36 | |||||
| 4 | WPW10406243 | Burner (rr(6k)) (Replaces: 8286181) |
|
Immediately | $ 37.22 | ||||
| 5 | W10420353 | Cooktop (black) |
|
- | |||||
| 5 | W10420352 | Cooktop (white) |
|
- | |||||
| 6 | WP8523854 | Panel, Manifold (white) (Replaces: 8523854) |
|
$ 276.74 | |||||
| 6 | 8523855 | Panel, Manifold (black) |
|
$ 167.79 | |||||
| 7 | WPW10200193 | Knob, Control (black) (Replaces: W10200193) |
|
$ 23.03 | |||||
| 7 | WPW10200192 | Knob, Control (white) (Replaces: W10200192) |
|
Immediately | $ 79.92 | ||||
| 8 | WP3368921 | Screw (Replaces: 3400701) |
|
Immediately | $ 7.13 | ||||
| 9 | W10239516 | Kit, Grate (wetstone) |
|
- | |||||
| 9 | W10239517 | Kit, Grate (black) |
|
- |
