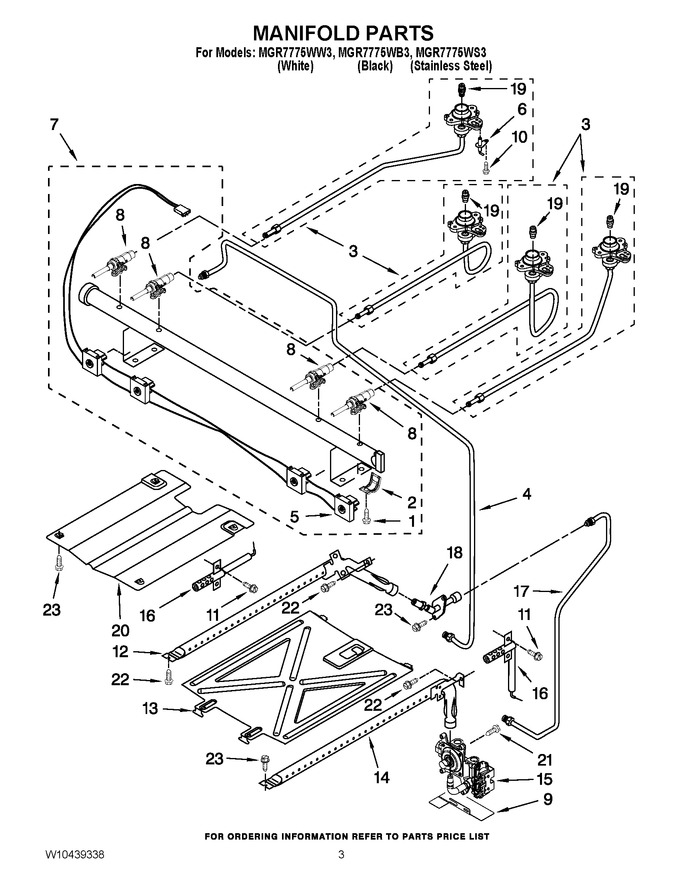

03 - Manifold Parts
04 - Chassis Parts
05 - Drawer & Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10295997 | Screw, Valve |
|
$ 6.97 | |||||
| 2 | W10949105 | Bracket, Valve (Replaces: W10295996) |
|
$ 21.67 | |||||
| 3 | WPW10157415 | Tubing, Burner W/orifice (right Rear) (Replaces: W10157415) |
|
$ 109.96 | |||||
| 3 | W10170345 | Tubing, Burner W/orifice (right Front) |
|
$ 47.05 | |||||
| 3 | W10157418 | Tubing, Burner W/orifice (left Rear) |
|
$ 49.23 | |||||
| 3 | W10170346 | Tubing, Burner W/orifice (left Front) |
|
- | |||||
| 4 | W11680399 | Tubing (manifold To Regulator) (Replaces: W10215439) |
|
$ 146.27 | |||||
| 5 | WPW10295998 | Harness, Igniter (w/switches) (Replaces: W10295998) |
|
$ 217.36 | |||||
| 6 | WPW10216419 | Electrode (Replaces: W10216419) |
|
Immediately | $ 34.97 | ||||
| 7 | W10314241 | Assembly, Manifold |
|
- | |||||
| 8 | WPW10279615 | Valve (lf/rf) (Replaces: W10279615) |
|
$ 246.58 | |||||
| 8 | WPW10247744 | Valve (right Rear) (Replaces: W10247744) |
|
$ 266.78 | |||||
| 8 | WPW10279614 | Valve (left Front) (Replaces: W10279614) |
|
$ 266.49 | |||||
| 9 | W10224921 | Bracket, Regulator |
|
- | |||||
| 10 | WP8273062 | Screw (Replaces: 8273062) |
|
Immediately | $ 7.91 | ||||
| 11 | W11684507 | Screw (Replaces: 3196385) |
|
$ 13.59 | |||||
| 12 | WP8054078 | Burner, Broiler (Replaces: 8054078) |
|
$ 227.96 | |||||
| 13 | WPW10184491 | Spreader, Flame (oven) (Replaces: W10184491) |
|
$ 241.45 | |||||
| 14 | WP9758078 | Burner, Bake (Replaces: 9758078) |
|
$ 215.30 | |||||
| 15 | WPW10602001 | Valve/regulator (Replaces: W10224914) |
|
$ 324.73 | |||||
| 16 | WP8054129 | Igniter (broil) (Replaces: 8054129) |
|
Immediately | $ 137.14 | ||||
| 16 | WP9758079 | Igniter (bake) (Replaces: 9758079) |
|
Immediately | $ 41.01 | ||||
| 17 | W10420040 | Tubing (broiler Fitting To Valve) |
|
$ 185.29 | |||||
| 18 | W10340259 | Fitting, Broiler |
|
- | |||||
| 19 | WPW10170506 | Orifice, Burner (right Rear) (Replaces: W10170506) |
|
$ 93.19 | |||||
| 19 | WPW10170508 | Orifice, Burner (left Rear) (Replaces: W10170508) |
|
$ 90.68 | |||||
| 19 | WPW10170510 | Orifice, Burner (lf & Rf) (Replaces: W10170510) |
|
$ 93.19 | |||||
| 20 | W10137062 | Spreader, Flame (broiler) |
|
- | |||||
| 21 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.95 | |||||
| 22 | 3196265 | Screw |
|
- | |||||
| 23 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 14.02 | ||||
| NI | WPW10170534 | Spuds, Lp Gas (kit) (Replaces: W10170534) |
|
$ 105.61 |
