01 - Cooktop Parts

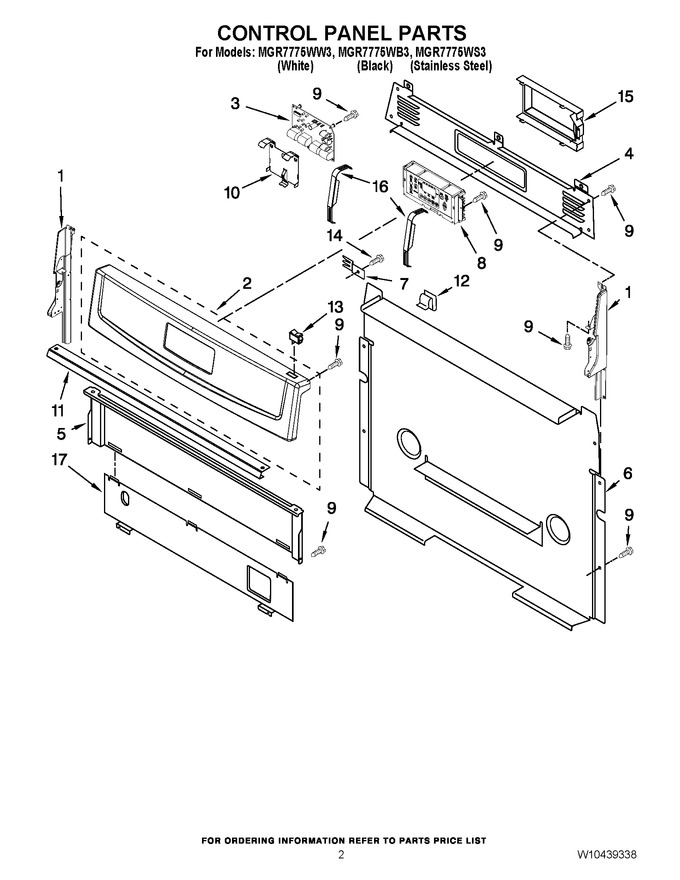

02 - Control Panel Parts
03 - Manifold Parts
04 - Chassis Parts
05 - Drawer & Broiler Parts
06 - Door Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap, Left Hand (black) (Replaces: W10184437) |
|
$ 146.50 | |||||
| 1 | W11219370 | Endcap, Right Hand (white) (Replaces: W10184434) |
|
$ 57.93 | |||||
| 1 | W11219665 | Endcap, Right Hand (black) (Replaces: W10184438) |
|
$ 40.44 | |||||
| 1 | W11219365 | Endcap, Left Hand (white) (Replaces: W10184433) |
|
$ 40.43 | |||||
| 2 | W10292034 | Panel, Control (white) |
|
- | |||||
| 2 | W10292035 | Panel, Control (black) |
|
- | |||||
| 2 | W10292036 | Panel, Control (stainless Model) |
|
- | |||||
| 3 | WPW10331686 | Module, Spark (Replaces: W10331686) |
|
Immediately | $ 393.86 | ||||
| 4 | W10198745 | Cover, Upper |
|
$ 122.76 | |||||
| 5 | W10192841 | Shield, Heat |
|
$ 101.61 | |||||
| 6 | W10184251 | Cover, Back |
|
- | |||||
| 7 | 8523412 | Bracket, Support |
|
$ 159.90 | |||||
| 8 | W10271780 | Control, Range (black) |
|
- | |||||
| 8 | W10271779 | Control, Range (white) |
|
- | |||||
| 9 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 14.02 | ||||
| 10 | W10516463 | Brkt-mntg, Dsi (Replaces: W10137524) |
|
- | |||||
| 11 | W10211996 | Brkt-mntg,console |
|
- | |||||
| 12 | WP8273564 | Clip (Replaces: 8273564) |
|
$ 12.06 | |||||
| 13 | WP4314961 | Switch-rocker (black) (Replaces: 3148564) |
|
$ 89.48 | |||||
| 13 | 3149360 | Switch-rocker (white) |
|
$ 89.01 | |||||
| 14 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.95 | ||||
| 15 | W10158780 | Cover |
|
$ 112.84 | |||||
| 16 | W11230932 | Bracket, Eoc Mount (Replaces: W10138683) |
|
Immediately | $ 80.77 | ||||
| 17 | 8053505 | Shield, Lower Heat |
|
$ 157.99 |
